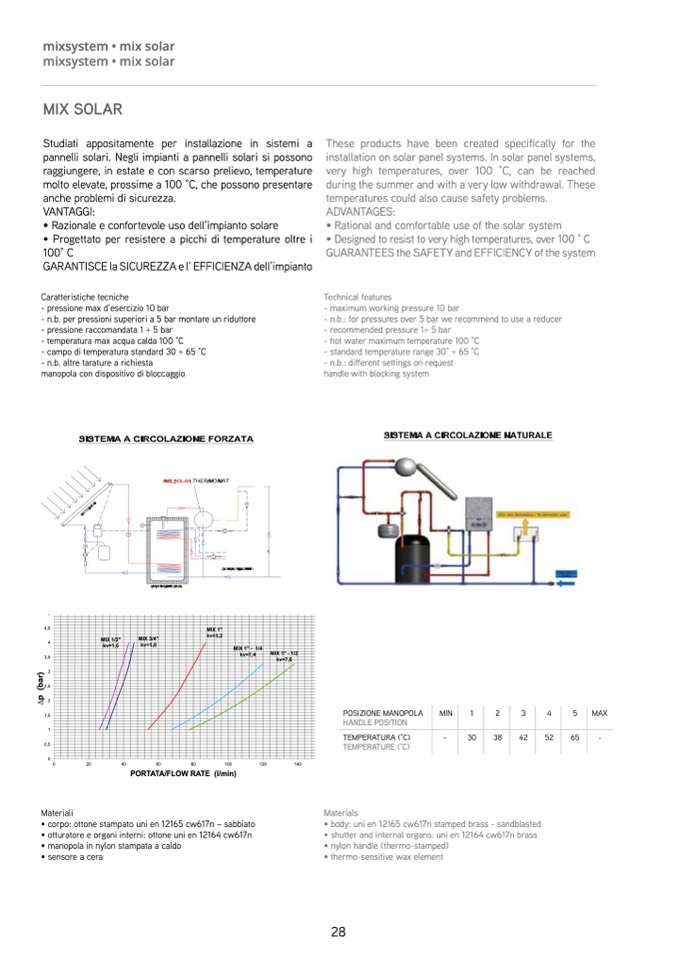

mixsystem • mix solar

mixsystem • mix solar

MIX SOLA

R

Studiati appositamente per installazione in sistemi

a

pannelli solari. Negli impianti a pannelli solari si possono

raggiungere, in estate e con scarso prelievo, temperature

molto elevate, prossime a 100 °C, che possono presentar

e

anche problemi di sicurezza

.

VANTAGGI

:

• Razionale e confortevole uso dell’impianto solare

• Progettato per resistere a picchi di temperature oltre i

100°

C

GARANTISCE la SICUREZZA e l’ EFFICIENZA dell’impianto

Caratteristiche tecniche

- pressione max d’esercizio 10 bar

- n.b. per pressioni superiori a 5 bar montare un riduttore

- pressione raccomandata 1 ÷ 5 ba

r

- temperatura max acqua calda 100 °

C

- campo di temperatura standard 30 ÷ 65 °C

- n.b. altre tarature a richiest

a

manopola con dispositivo di bloccaggio

5

4,5

4

3,5

3

p

(

b

a

r

)

2,5

2

1,5

1

0,5

0

MIX 1

"

kv=3,

2

MIX 1/2

"

kv=1,6

MIX 3/4"

kv=1,

8

MIX 1" - 1/4

kv=7,4

MIX 1" - 1/2

kv=7,6

0

20

40

60

80

100

120

14

0

PORTATA/FLOW RATE (l/min

)

Materiali

• corpo: ottone stampato uni en 12165 cw617n – sabbiat

o

• otturatore e organi interni: ottone uni en 12164 cw617n

• manopola in nylon stampata a caldo

• sensore a cera

These products have been created speci

fically for th

e

installation on solar panel systems. In solar panel systems,

very high temperatures, over 100 °C, can be reache

d

during the summer and with a very low withdrawal. Thes

e

temperatures could also cause safety problems

.

ADVANTAGES

:

• Rational and comfortable use of the solar syste

m

• Designed to resist to very high temperatures, over 100 °

C

GUARANTEES the SAFETY and EFFICIENCY of the syste

m

Technical features

- maximum working pressure 10 ba

r

- n.b.: for pressures over 5 bar we recommend to use a reduce

r

- recommended pressure 1÷ 5 bar

- hot water maximum temperature 100 °

C

- standard temperature range 30° ÷ 65 °

C

- n.b.: different settings on reques

t

handle with blocking syste

m

POSIZIONE MANOPOLA

HANDLE POSITION

MIN

1

2

3

4

5

MA

X

TEMPERATURA (°C

)

TEMPERATURE (°C

)

-

30

38

42

52

6

5

Material

s

• body: uni en 12165 cw617n stamped brass - sandblasted

• shutter and internal organs: uni en 12164 cw617n brass

• nylon handle (thermo-stamped)

• thermo-sensitive wax element

28
