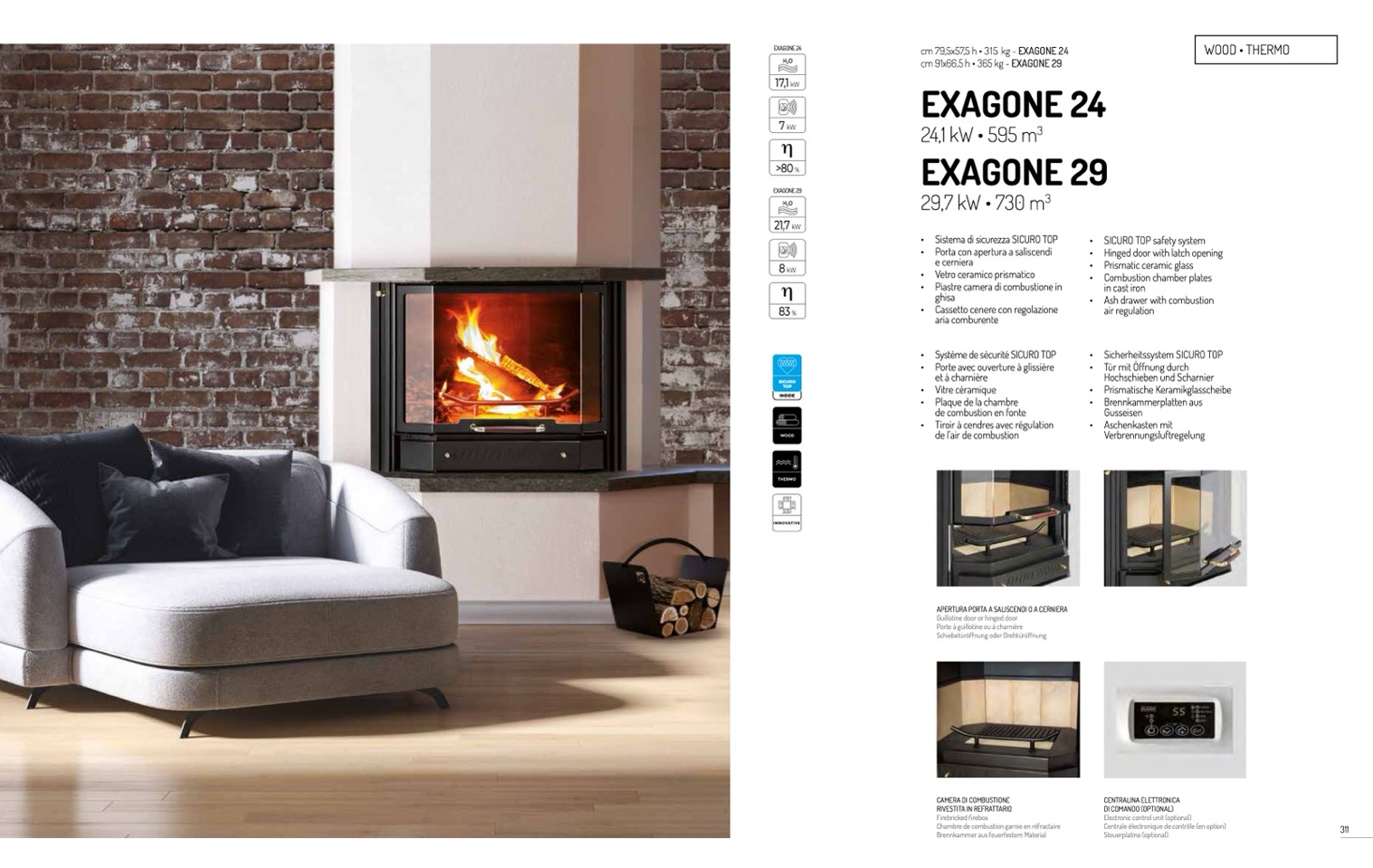

WOOD • THERMO

EXAGONE 24

17,1

kW

7

kW

η

>80

%

EXAGONE 29

21,7

kW

8

kW

η

83

%

SICURO

TOP

INSIDE

cm 79,5x57,5 h • 315 kg - EXAGONE 24

cm 91x66,5 h • 365 kg - EXAGONE 29

EXAGONE 24

24,1 kW • 595 m

3

EXAGONE 29

29,7 kW • 730 m

3

• Sistema di sicurezza SICURO TOP

• Porta con apertura a saliscendi

e cerniera

• Vetro ceramico prismatico

• Piastre camera di combustione in

ghisa

• Cassetto cenere con regolazione

aria comburente

• Système de sécurité SICURO TOP

• Porte avec ouverture à glissière

et à charnière

• SICURO TOP safety system

• Hinged door with latch opening

• Prismatic ceramic glass

• Combustion chamber plates

in cast iron

• Ash drawer with combustion

air regulation

• Sicherheitssystem SICURO TOP

• Tür mit Öffnung durch

Hochschieben und Scharnier

• Prismatische Keramikglasscheibe

• Brennkammerplatten aus

Gusseisen

• Aschenkasten mit

Verbrennungsluftregelung

• Vitre céramique

• Plaque de la chambre

de combustion en fonte

• Tiroir à cendres avec régulation

de l’air de combustion

APERTURA PORTA A SALISCENDI O A CERNIERA

Guillotine door or hinged door

Porte à guillotine ou à charnière

Schiebetüröffnung oder Drehtüröffnung

CAMERA DI COMBUSTIONE

RIVESTITA IN REFRATTARIO

Firebricked firebox

Chambre de combustion garnie en réfractaire

Brennkammer aus feuerfestem Material

CENTRALINA ELETTRONICA

DI COMANDO (OPTIONAL)

Electronic control unit (optional)

Centrale électronique de contrôle (en option)

Steuerplatine (optional)
