Annex to Solar Keymark Certificate
Page 1/2
Annex to Solar Keymark Certificate - Summary of EN 12975-2
Test Results
Licence Number
SC0140-18
Date issued
2018-03-16
Issued by
RISE
Licence holder
Cordivari S. R. L.
Country
Italy
Brand (optional)
CVT
Web
http://www.cordivari.it/
Street, Number
Zona Industriale Pagliare – 64020 morro d’oro
info@cordivari.it
Postcode, City
Teramo
Tel
+39 085 80401
Collector Type
Evacuated tubular collector
Collector name
Power output per collector
Gb = 850 W/m2; Gd = 150 W/m2
θm - θa
0K
10 K
30 K
50 K
70 K
64 K
m2
mm
mm
mm
W
W
W
W
W
W
CVT10
2,17
1 917
1 130
133
1 175
1 147
1 088
1 021
947
970
CVT15
3,22
1 917
1 680
133
1 743
1 703
1 614
1 515
1 406
1 440
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Power output per m2 gross area
541
529
501
471
437
447
Performance parameters test method
Steady state - outdoor
Performance parameters (related to AG)
η0,hem
a1
a2
Units
-
W/(m2K) W/(m2K2)
Test results
0,541
1,212
0,004
0,180
0,000
0,000
0,910
Incidence angle modifier test method
Quasi dynamic - outdoor
Bi-directional incidence angle modifiers
Yes
Incidence angle modifier
Angle
10°
20°
30°
40°
50°
60°
70°
80°
90°
Transversal
Longitudinal
K
θT,coll
K
θL,coll
1,03
1,05
0,95
1,18
0,00
0,00
Heat transfer medium for testing
Water
Flow rate for testing (per gross area, A
G
)
dm/dt
0,020
kg/(sm2)
Maximum temperature difference for thermal performance calculations
(θ
m
-θ
a
)
max
64
K
Standard stagnation temperature (G = 1000 W/m2; θ
a
= 30 °C)
θ
stg
280
°C
Effective thermal capacity, incl. fluid (per gross area, A
G
)
C/m
2
3,17
kJ/(Km
2
)
Maximum operating temperature
θ
max_op
120
°C
Maximum operating pressure
p
max,op
1000
kPa
Testing laboratory
TestLab A
-
Test report(s)
131016040GZU-001
Dated
2014-01-07
Comments of testing laboratory
Datasheet version: 5.01, 2016-03-01
Negative mechanical load test of collector was not performed
Certification Body: RISE Research Institutes of Sweden | Certification
Box 857, SE-501 15 Borås, Sweden, Phone:+46 10 516 50 00, certifiering@ri.se | www.ri.se
Annex to Solar Keymark Certificate
Page 2/2
Annex to Solar Keymark Certificate
Supplementary Information
Licence Number
SC0140-18
Issued
2018-03-16
Annual collector output in kWh/collector at mean fluid temperature θ
m
, based on EN 12975-2 test results
Collector name
Standard Locations
Athens
Davos
Stockholm
Würzburg
CVT10
θ
m
25°C
1 998
50°C
1 716
75°C
1 435
25°C
1 682
50°C
1 418
75°C
1 171
25°C
1 212
50°C
992
75°C
796
25°C
1 304
50°C
1 069
75°C
854
CVT15
2 965
2 546
2 129
2 496
2 105
1 738
1 798
1 472
1 181
1 935
1 586
1 267
Annual output per m2 gross area
921
791
661
775
654
540
558
457
367
601
493
393
Fixed or tracking collector
Fixed (slope = latitude - 15°; rounded to nearest 5°)
Annual irradiation on collector plane
1765 kWh/m2
1714 kWh/m2
1166 kWh/m2
1244 kWh/m2
Mean annual ambient air temperature
18,5°C
3,2°C
7,5°C
9,0°C
Collector orientation or tracking mode
South, 25°
South, 30°
South, 45°
South, 35°
The collector is operated at constant temperature θm (mean of in- and outlet temperatures). The calculation of the annual
collector performance is performed with the official Solar Keymark spreadsheet tool Scenocalc Ver. 5.01 (March 2016). A detailed
description of the calculations is available at www.solarkeymark.org/scenocalc
Additional Information
Collector heat transfer medium
Water-Glycole
Hybrid Thermal and Photo Voltaic collector
No
The collector is deemed to be suitable for roof integration
The collector was tested successfully according to EN ISO 9806:2013 under the following conditions:
No
Climate class (A, B or C)
C
--
Maximum tested positive load
2860
Pa
Maximum tested negative load
-
Pa
Hail resistance using steel ball (maximum drop height)
0,8
m
Energy Labelling Information
Reference Area, A
sol
(m
2
) Data required for CDR (EU) No 811/2013 - Reference Area A
sol
CVT10
2,17
CVT15
3,22
Collector efficiency (η
col
)
49
%
Remark: Collector efficiency (η
col
) is defined in CDR (EU) No
811/2013 as collector efficiency of the solar collector at a
temperature difference between the solar collector and the
surrounding air of 40 K and a global solar irradiance of 1000
W/m2, expressed in % and rounded to the nearest integer.
Deviating from the regulation η
col
is based on reference area
(A
sol
) which is aperture area for values according to EN 12975-2
or gross area for ISO 9806:2013.
Data required for CDR (EU) No 812/2013 - Reference Area A
sol
Zero-loss efficiency (η
0
)
First-order coefficient (a
1
)
Second-order coefficient (a
2
)
Incidence angle modifier IAM (50°)
Remark: The data given in this section are related to collector
reference area (A
sol
) which is aperture area for values according
to EN 12975-2 or gross area for ISO 9806. Consistent data sets for
either aperture or gross area can be used in calculations like in the
regulation 811 and 812 and simulation programs.
0,541
--
1,21
W/(m2K)
0,004
W/(m2K2)
0,00
--
Certification Body: RISE Research Institutes of Sweden | Certification
Box 857, SE-501 15 Borås, Sweden, Phone:+46 10 516 50 00, certifiering@ri.se | www.ri.se

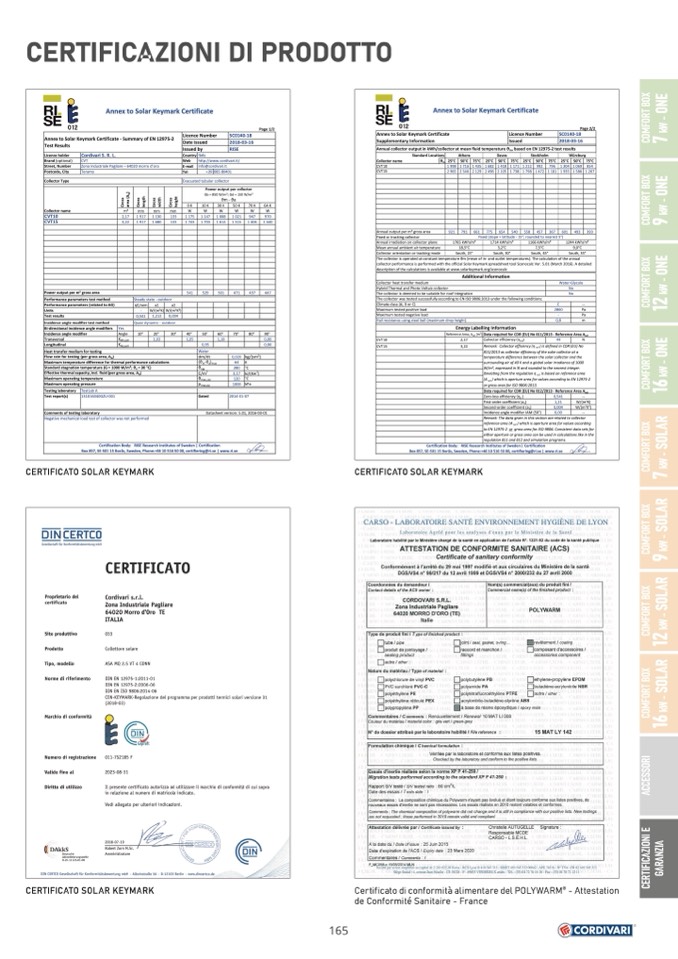

CERTIFICATO SOLAR KEYMARK
