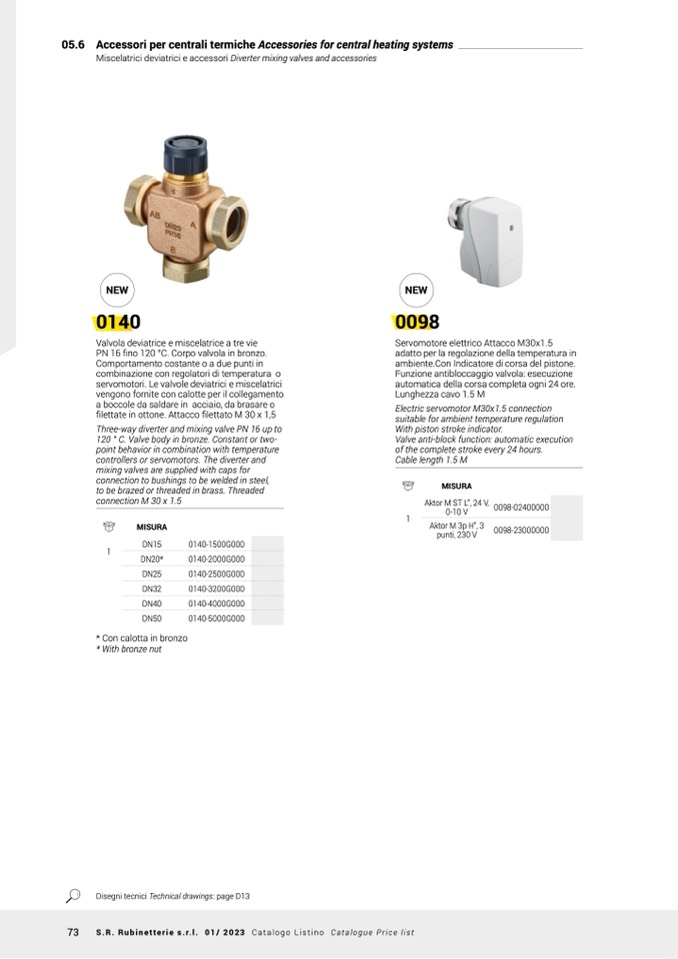

05.6 Accessori per centrali termiche Accessories for central heating systems

Miscelatrici deviatrici e accessori Diverter mixing valves and accessories

NEW

0140

Valvola deviatrice e miscelatrice a tre vie

PN 16 fino 120 °C. Corpo valvola in bronzo.

Comportamento costante o a due punti in

combinazione con regolatori di temperatura o

servomotori. Le valvole deviatrici e miscelatrici

vengono fornite con calotte per il collegamento

a boccole da saldare in acciaio, da brasare o

filettate in ottone. Attacco filettato M 30 x 1,5

Three-way diverter and mixing valve PN 16 up to

120 ° C. Valve body in bronze. Constant or two-

point behavior in combination with temperature

controllers or servomotors. The diverter and

mixing valves are supplied with caps for

connection to bushings to be welded in steel,

to be brazed or threaded in brass. Threaded

connection M 30 x 1.5

NEW

0098

Servomotore elettrico Attacco M30x1.5

adatto per la regolazione della temperatura in

ambiente.Con Indicatore di corsa del pistone.

Funzione antibloccaggio valvola: esecuzione

automatica della corsa completa ogni 24 ore.

Lunghezza cavo 1.5 M

Electric servomotor M30x1.5 connection

suitable for ambient temperature regulation

With piston stroke indicator.

Valve anti-block function: automatic execution

of the complete stroke every 24 hours.

Cable length 1.5 M

MISURA

DN15

DN20*

DN25

DN32

DN40

DN50

* Con calotta in bronzo

* With bronze nut

1

MISURA

Aktor M ST L”, 24 V,

0098-02400000

0-10 V

Aktor M 3p H”, 3

0098-23000000

punti, 230 V

1

0140-1500G000

0140-2000G000

0140-2500G000

0140-3200G000

0140-4000G000

0140-5000G000

Disegni tecnici Technical drawings: page D13

73 S.R. Rubinetterie s.r.l. 01/ 2023 Catalogo Listino Catalogue Price list
