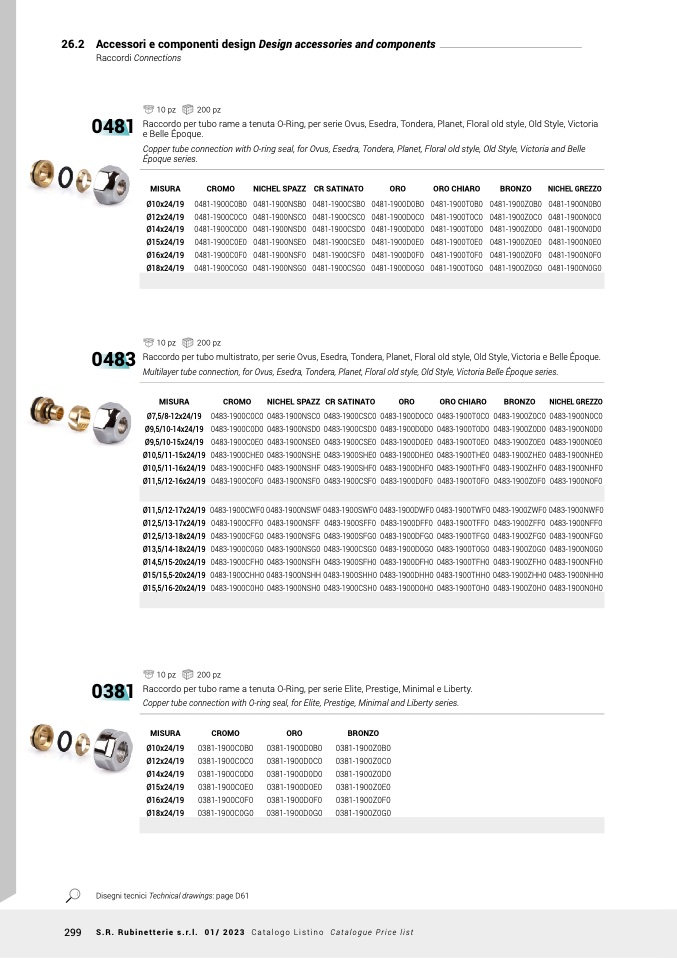

26.2
Accessori e componenti design Design accessories and components
Raccordi Connections
10 pz
200 pz
0481
Raccordo per tubo rame a tenuta O-Ring, per serie Ovus, Esedra, Tondera, Planet, Floral old style, Old Style, Victoria
e Belle Époque.
Copper tube connection with O-ring seal, for Ovus, Esedra, Tondera, Planet, Floral old style, Old Style, Victoria and Belle
Époque series.
MISURA
CROMO
Ø10x24/19 0481-1900C0B0
Ø12x24/19 0481-1900C0C0
Ø14x24/19 0481-1900C0D0
Ø15x24/19 0481-1900C0E0
Ø16x24/19 0481-1900C0F0
Ø18x24/19 0481-1900C0G0
NICHEL SPAZZ CR SATINATO
ORO
ORO CHIARO
BRONZO
NICHEL GREZZO
0481-1900NSB0 0481-1900CSB0 0481-1900D0B0 0481-1900T0B0 0481-1900Z0B0 0481-1900N0B0
0481-1900NSC0 0481-1900CSC0 0481-1900D0C0 0481-1900T0C0 0481-1900Z0C0 0481-1900N0C0
0481-1900NSD0 0481-1900CSD0 0481-1900D0D0 0481-1900T0D0 0481-1900Z0D0 0481-1900N0D0
0481-1900NSE0 0481-1900CSE0 0481-1900D0E0 0481-1900T0E0 0481-1900Z0E0 0481-1900N0E0
0481-1900NSF0 0481-1900CSF0 0481-1900D0F0 0481-1900T0F0 0481-1900Z0F0 0481-1900N0F0
0481-1900NSG0 0481-1900CSG0 0481-1900D0G0 0481-1900T0G0 0481-1900Z0G0 0481-1900N0G0
10 pz
200 pz
0483
Raccordo per tubo multistrato, per serie Ovus, Esedra, Tondera, Planet, Floral old style, Old Style, Victoria e Belle Époque.
Multilayer tube connection, for Ovus, Esedra, Tondera, Planet, Floral old style, Old Style, Victoria Belle Époque series.
MISURA
CROMO
NICHEL SPAZZ CR SATINATO
ORO
ORO CHIARO
BRONZO
0483-1900NSC0 0483-1900CSC0 0483-1900D0C0 0483-1900T0C0 0483-1900Z0C0
0483-1900NSD0 0483-1900CSD0 0483-1900D0D0 0483-1900T0D0 0483-1900Z0D0
0483-1900NSE0 0483-1900CSE0 0483-1900D0E0 0483-1900T0E0 0483-1900Z0E0
0483-1900NSHE 0483-1900SHE0 0483-1900DHE0 0483-1900THE0 0483-1900ZHE0
0483-1900NSHF 0483-1900SHF0 0483-1900DHF0 0483-1900THF0 0483-1900ZHF0
0483-1900NSF0 0483-1900CSF0 0483-1900D0F0 0483-1900T0F0 0483-1900Z0F0
NICHEL GREZZO
0483-1900N0C0
0483-1900N0D0
0483-1900N0E0
0483-1900NHE0
0483-1900NHF0
0483-1900N0F0
Ø7,5/8-12x24/19
Ø9,5/10-14x24/19
Ø9,5/10-15x24/19 0483-1900C0E0
Ø10,5/11-15x24/19 0483-1900CHE0
Ø10,5/11-16x24/19 0483-1900CHF0
Ø11,5/12-16x24/19 0483-1900C0F0
0483-1900C0C0
0483-1900C0D0
Ø11,5/12-17x24/19 0483-1900CWF00483-1900NSWF0483-1900SWF00483-1900DWF00483-1900TWF00483-1900ZWF00483-1900NWF0
Ø12,5/13-17x24/19 0483-1900CFF0 0483-1900NSFF 0483-1900SFF0 0483-1900DFF0 0483-1900TFF0 0483-1900ZFF0 0483-1900NFF0
Ø12,5/13-18x24/19 0483-1900CFG0 0483-1900NSFG 0483-1900SFG0 0483-1900DFG0 0483-1900TFG0 0483-1900ZFG0 0483-1900NFG0
Ø13,5/14-18x24/19 0483-1900C0G0 0483-1900NSG0 0483-1900CSG0 0483-1900D0G0 0483-1900T0G0 0483-1900Z0G0 0483-1900N0G0
Ø14,5/15-20x24/19 0483-1900CFH0 0483-1900NSFH 0483-1900SFH0 0483-1900DFH0 0483-1900TFH0 0483-1900ZFH0 0483-1900NFH0
Ø15/15,5-20x24/19 0483-1900CHH0 0483-1900NSHH 0483-1900SHH0 0483-1900DHH0 0483-1900THH0 0483-1900ZHH0 0483-1900NHH0
Ø15,5/16-20x24/19 0483-1900C0H0 0483-1900NSH0 0483-1900CSH0 0483-1900D0H0 0483-1900T0H0 0483-1900Z0H0 0483-1900N0H0
10 pz
200 pz
0381
Raccordo per tubo rame a tenuta O-Ring, per serie Elite, Prestige, Minimal e Liberty.
Copper tube connection with O-ring seal, for Elite, Prestige, Minimal and Liberty series.
MISURA
Ø10x24/19
Ø12x24/19
Ø14x24/19
Ø15x24/19
Ø16x24/19
Ø18x24/19
CROMO
0381-1900C0B0
0381-1900C0C0
0381-1900C0D0
0381-1900C0E0
0381-1900C0F0
0381-1900C0G0
ORO
0381-1900D0B0
0381-1900D0C0
0381-1900D0D0
0381-1900D0E0
0381-1900D0F0
0381-1900D0G0
BRONZO
0381-1900Z0B0
0381-1900Z0C0
0381-1900Z0D0
0381-1900Z0E0
0381-1900Z0F0
0381-1900Z0G0
Disegni tecnici Technical drawings: page D61
