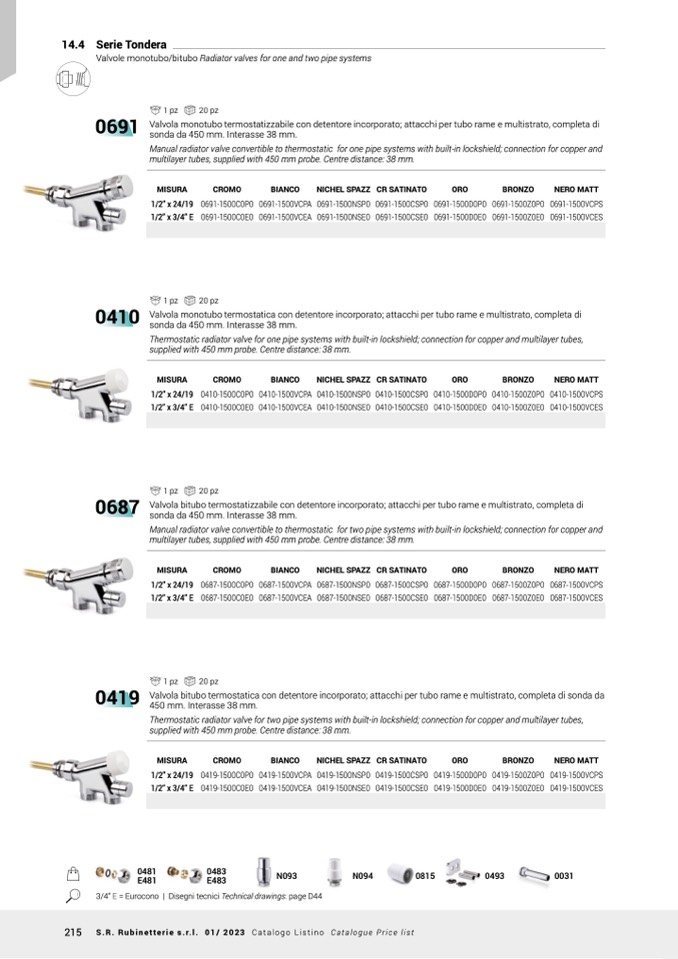

14.4 Serie Tondera

Valvole monotubo/bitubo Radiator valves for one and two pipe systems

1 pz

20 pz

0691

Valvola monotubo termostatizzabile con detentore incorporato; attacchi per tubo rame e multistrato, completa di

sonda da 450 mm. Interasse 38 mm.

Manual radiator valve convertible to thermostatic for one pipe systems with built-in lockshield; connection for copper and

multilayer tubes, supplied with 450 mm probe. Centre distance: 38 mm.

MISURA

1/2” x 24/19

1/2” x 3/4” E

1 pz

CROMO

0691-1500C0P0

0691-1500C0E0

20 pz

BIANCO

NICHEL SPAZZ CR SATINATO

ORO

BRONZO

NERO MATT

0691-1500VCPA 0691-1500NSP0 0691-1500CSP0 0691-1500D0P0 0691-1500Z0P0 0691-1500VCPS

0691-1500VCEA 0691-1500NSE0 0691-1500CSE0 0691-1500D0E0 0691-1500Z0E0 0691-1500VCES

0410

Valvola monotubo termostatica con detentore incorporato; attacchi per tubo rame e multistrato, completa di

sonda da 450 mm. Interasse 38 mm.

Thermostatic radiator valve for one pipe systems with built-in lockshield; connection for copper and multilayer tubes,

supplied with 450 mm probe. Centre distance: 38 mm.

MISURA

1/2” x 24/19

1/2” x 3/4” E

1 pz

CROMO

BIANCO

NICHEL SPAZZ CR SATINATO

ORO

BRONZO

NERO MATT

0410-1500C0P0 0410-1500VCPA 0410-1500NSP0 0410-1500CSP0 0410-1500D0P0 0410-1500Z0P0 0410-1500VCPS

0410-1500C0E0 0410-1500VCEA 0410-1500NSE0 0410-1500CSE0 0410-1500D0E0 0410-1500Z0E0 0410-1500VCES

20 pz

0687

Valvola bitubo termostatizzabile con detentore incorporato; attacchi per tubo rame e multistrato, completa di

sonda da 450 mm. Interasse 38 mm.

Manual radiator valve convertible to thermostatic for two pipe systems with built-in lockshield; connection for copper and

multilayer tubes, supplied with 450 mm probe. Centre distance: 38 mm.

MISURA

1/2” x 24/19

1/2” x 3/4” E

1 pz

CROMO

0687-1500C0P0

0687-1500C0E0

20 pz

BIANCO

NICHEL SPAZZ CR SATINATO

ORO

BRONZO

NERO MATT

0687-1500VCPA 0687-1500NSP0 0687-1500CSP0 0687-1500D0P0 0687-1500Z0P0 0687-1500VCPS

0687-1500VCEA 0687-1500NSE0 0687-1500CSE0 0687-1500D0E0 0687-1500Z0E0 0687-1500VCES

0419

Valvola bitubo termostatica con detentore incorporato; attacchi per tubo rame e multistrato, completa di sonda da

450 mm. Interasse 38 mm.

Thermostatic radiator valve for two pipe systems with built-in lockshield; connection for copper and multilayer tubes,

supplied with 450 mm probe. Centre distance: 38 mm.

MISURA

1/2” x 24/19

1/2” x 3/4” E

0481

E481

CROMO

0419-1500C0P0

0419-1500C0E0

0483

E483

BIANCO

0419-1500VCPA

0419-1500VCEA

N093

NICHEL SPAZZ

0419-1500NSP0

0419-1500NSE0

CR SATINATO

ORO

BRONZO

NERO MATT

0419-1500CSP0 0419-1500D0P0 0419-1500Z0P0 0419-1500VCPS

0419-1500CSE0 0419-1500D0E0 0419-1500Z0E0 0419-1500VCES

3/4” E = Eurocono | Disegni tecnici Technical drawings: page D44

N094

0815

0493

0031

215 S.R. Rubinetterie s.r.l. 01/ 2023 Catalogo Listino Catalogue Price list
