3/4” E
1/2”

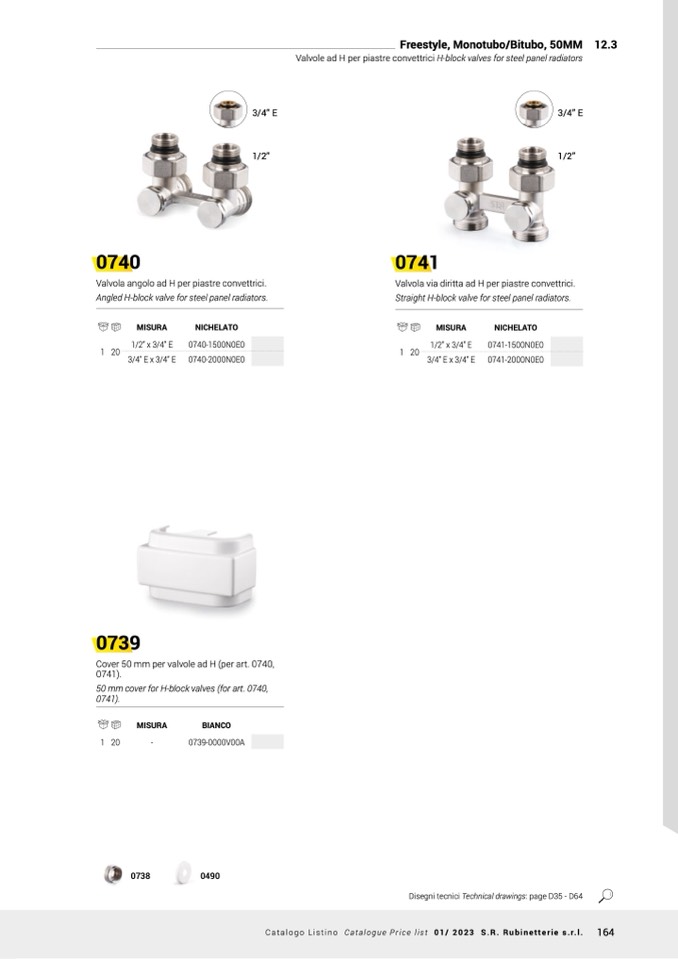

Valvole ad H per piastre convettrici H-block valves for steel panel radiators
3/4” E
1/2”
Valvola via diritta ad H per piastre convettrici.
Straight H-block valve for steel panel radiators.
Valvola angolo ad H per piastre convettrici.
Angled H-block valve for steel panel radiators.
MISURA
1 20
1/2” x 3/4” E
3/4” E x 3/4” E
NICHELATO
0740-1500N0E0
0740-2000N0E0
1 20
MISURA
1/2” x 3/4” E
3/4” E x 3/4” E
NICHELATO
0741-1500N0E0
0741-2000N0E0
Cover 50 mm per valvole ad H (per art. 0740,
0741).
50 mm cover for H-block valves (for art. 0740,
0741).
MISURA
1 20
-
BIANCO
0739-0000V00A
0738
0490
Disegni tecnici Technical drawings: page D35 - D64
Catalogo Listino Catalogue Price list 01/ 2023 S.R. Rubinetterie s.r.l.
164
