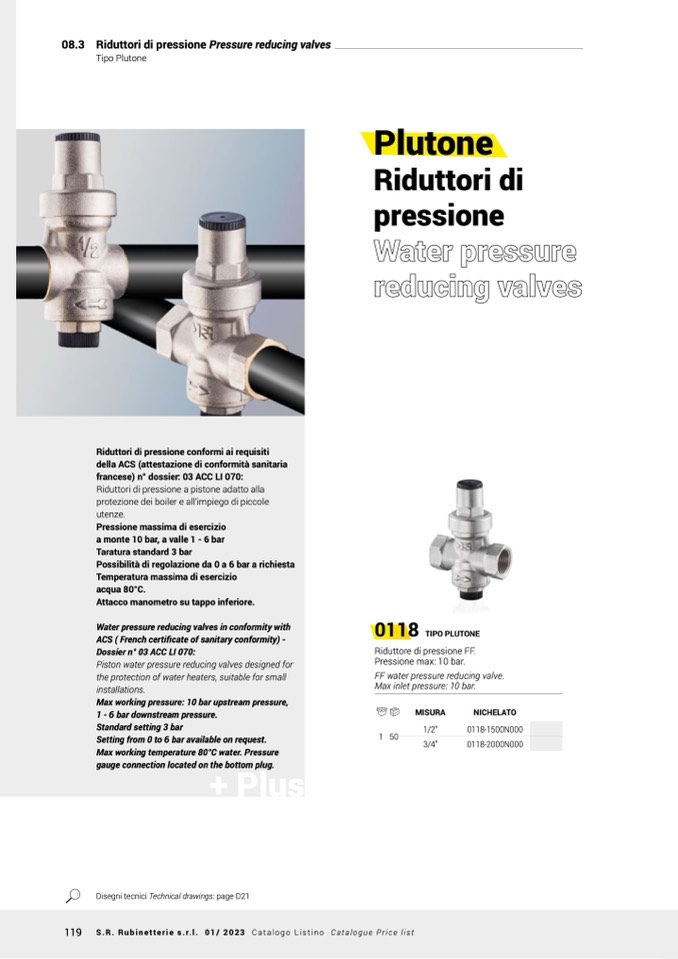

08.3 Riduttori di pressione Pressure reducing valves

Tipo Plutone

Riduttori di pressione conformi ai requisiti

della ACS (attestazione di conformità sanitaria

francese) n° dossier: 03 ACC LI 070:

Riduttori di pressione a pistone adatto alla

protezione dei boiler e all’impiego di piccole

utenze.

Pressione massima di esercizio

a monte 10 bar, a valle 1 - 6 bar

Taratura standard 3 bar

Possibilità di regolazione da 0 a 6 bar a richiesta

Temperatura massima di esercizio

acqua 80°C.

Attacco manometro su tappo inferiore.

Water pressure reducing valves in conformity with

ACS ( French certificate of sanitary conformity) -

Dossier n° 03 ACC LI 070:

Piston water pressure reducing valves designed for

the protection of water heaters, suitable for small

installations.

Max working pressure: 10 bar upstream pressure,

1 - 6 bar downstream pressure.

Standard setting 3 bar

Setting from 0 to 6 bar available on request.

Plutone

Riduttori di

pressione

Water pressure

reducing valves

0118

TIPO PLUTONE

Riduttore di pressione FF.

Pressione max: 10 bar.

FF water pressure reducing valve.

Max inlet pressure: 10 bar.

1 50

MISURA

1/2”

3/4”

NICHELATO

0118-1500N000

0118-2000N000

Max working temperature 80°C water. Pressure

gauge connection located on the bottom plug.

Disegni tecnici Technical drawings: page D21

+ Plus
