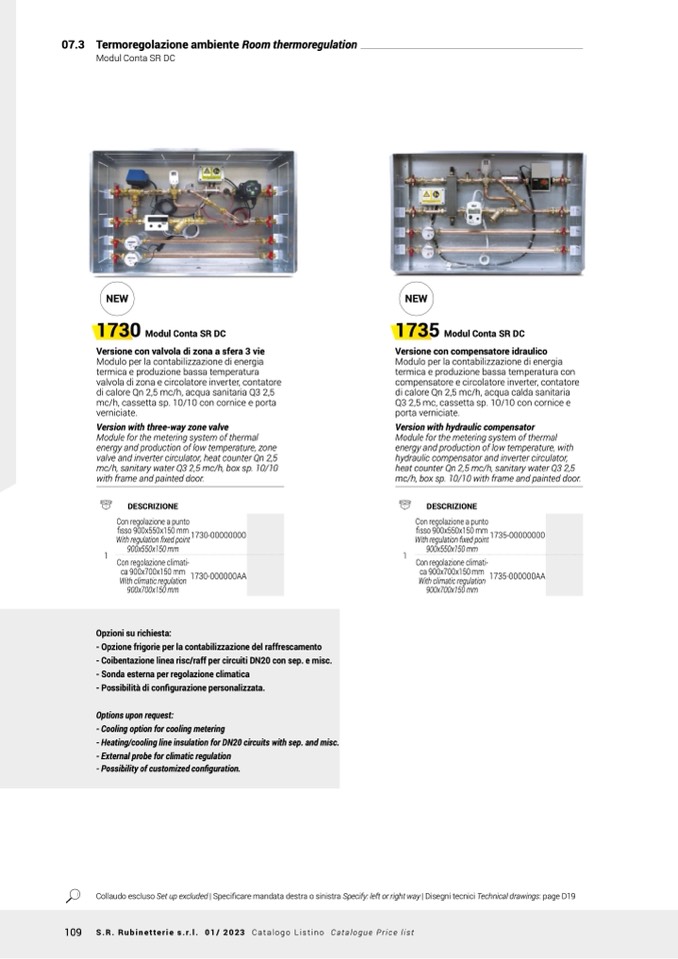

07.3 Termoregolazione ambiente Room thermoregulation

Modul Conta SR DC

NEW

1730

Modul Conta SR DC

Versione con valvola di zona a sfera 3 vie

Modulo per la contabilizzazione di energia

termica e produzione bassa temperatura

valvola di zona e circolatore inverter, contatore

di calore Qn 2,5 mc/h, acqua sanitaria Q3 2,5

mc/h, cassetta sp. 10/10 con cornice e porta

verniciate.

Version with three-way zone valve

Module for the metering system of thermal

energy and production of low temperature, zone

valve and inverter circulator, heat counter Qn 2,5

mc/h, sanitary water Q3 2,5 mc/h, box sp. 10/10

with frame and painted door.

NEW

1735

Modul Conta SR DC

Versione con compensatore idraulico

Modulo per la contabilizzazione di energia

termica e produzione bassa temperatura con

compensatore e circolatore inverter, contatore

di calore Qn 2,5 mc/h, acqua calda sanitaria

Q3 2,5 mc, cassetta sp. 10/10 con cornice e

porta verniciate.

Version with hydraulic compensator

Module for the metering system of thermal

energy and production of low temperature, with

hydraulic compensator and inverter circulator,

heat counter Qn 2,5 mc/h, sanitary water Q3 2,5

mc/h, box sp. 10/10 with frame and painted door.

1

DESCRIZIONE

Con regolazione a punto

fisso 900x550x150 mm

1730-00000000

With regulation fixed point

900x550x150 mm

Con regolazione climati-

ca 900x700x150 mm

1730-000000AA

With climatic regulation

900x700x150 mm

1

DESCRIZIONE

Con regolazione a punto

fisso 900x550x150 mm

1735-00000000

With regulation fixed point

900x550x150 mm

Con regolazione climati-

ca 900x700x150 mm

1735-000000AA

With climatic regulation

900x700x150 mm

Opzioni su richiesta:

- Opzione frigorie per la contabilizzazione del raffrescamento

- Coibentazione linea risc/raff per circuiti DN20 con sep. e misc.

- Sonda esterna per regolazione climatica

- Possibilità di configurazione personalizzata.

Options upon request:

- Cooling option for cooling metering

- Heating/cooling line insulation for DN20 circuits with sep. and misc.

- External probe for climatic regulation

- Possibility of customized configuration.

Collaudo escluso Set up excluded | Specificare mandata destra o sinistra Specify: left or right way | Disegni tecnici Technical drawings: page D19
