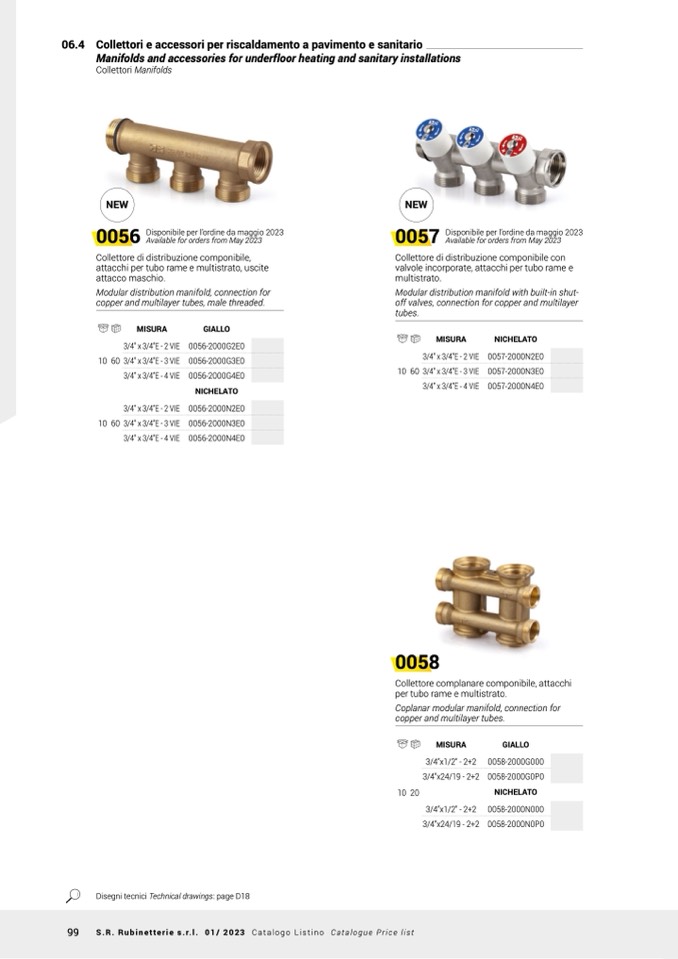

06.4 Collettori e accessori per riscaldamento a pavimento e sanitario

Manifolds and accessories for underfloor heating and sanitary installations

Collettori Manifolds

NEW

0056

Disponibile per l’ordine da maggio 2023

Available for orders from May 2023

Collettore di distribuzione componibile,

attacchi per tubo rame e multistrato, uscite

attacco maschio.

Modular distribution manifold, connection for

copper and multilayer tubes, male threaded.

NEW

0057

Disponibile per l’ordine da maggio 2023

Available for orders from May 2023

Collettore di distribuzione componibile con

valvole incorporate, attacchi per tubo rame e

multistrato.

Modular distribution manifold with built-in shut-

off valves, connection for copper and multilayer

tubes.

MISURA

3/4” x 3/4”E - 2 VIE

10 60 3/4” x 3/4”E - 3 VIE

3/4” x 3/4”E - 4 VIE

3/4” x 3/4”E - 2 VIE

10 60 3/4” x 3/4”E - 3 VIE

3/4” x 3/4”E - 4 VIE

GIALLO

0056-2000G2E0

0056-2000G3E0

0056-2000G4E0

NICHELATO

0056-2000N2E0

0056-2000N3E0

0056-2000N4E0

MISURA

3/4” x 3/4”E - 2 VIE

10 60 3/4” x 3/4”E - 3 VIE

3/4” x 3/4”E - 4 VIE

NICHELATO

0057-2000N2E0

0057-2000N3E0

0057-2000N4E0

0058

Collettore complanare componibile, attacchi

per tubo rame e multistrato.

Coplanar modular manifold, connection for

copper and multilayer tubes.

MISURA

3/4”x1/2” - 2+2

3/4”x24/19 - 2+2

10 20

3/4”x1/2” - 2+2

3/4”x24/19 - 2+2

GIALLO

0058-2000G000

0058-2000G0P0

NICHELATO

0058-2000N000

0058-2000N0P0

Disegni tecnici Technical drawings: page D18

99 S.R. Rubinetterie s.r.l. 01/ 2023 Catalogo Listino Catalogue Price list
