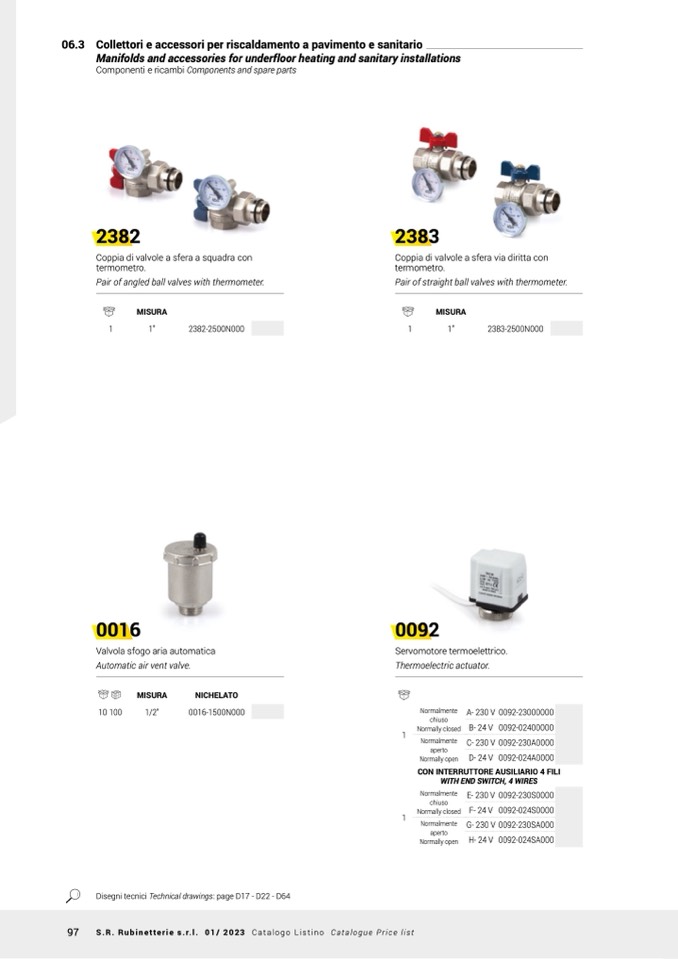

06.3 Collettori e accessori per riscaldamento a pavimento e sanitario

Manifolds and accessories for underfloor heating and sanitary installations

Componenti e ricambi Components and spare parts

2382

Coppia di valvole a sfera a squadra con

termometro.

Pair of angled ball valves with thermometer.

2383

Coppia di valvole a sfera via diritta con

termometro.

Pair of straight ball valves with thermometer.

MISURA

1

1”

2383-2500N000

MISURA

1

1”

2382-2500N000

0016

0092

Servomotore termoelettrico.

Thermoelectric actuator.

Valvola sfogo aria automatica

Automatic air vent valve.

MISURA

10 100

1/2”

NICHELATO

0016-1500N000

Normalmente

chiuso

Normally closed

Normalmente

aperto

Normally open

A- 230 V 0092-23000000

B- 24 V 0092-02400000

C- 230 V 0092-230A0000

D- 24 V 0092-024A0000

1

1

CON INTERRUTTORE AUSILIARIO 4 FILI

WITH END SWITCH, 4 WIRES

Normalmente

chiuso

Normally closed

Normalmente

aperto

Normally open

E- 230 V 0092-230S0000

F- 24 V 0092-024S0000

G- 230 V 0092-230SA000

H- 24 V 0092-024SA000
