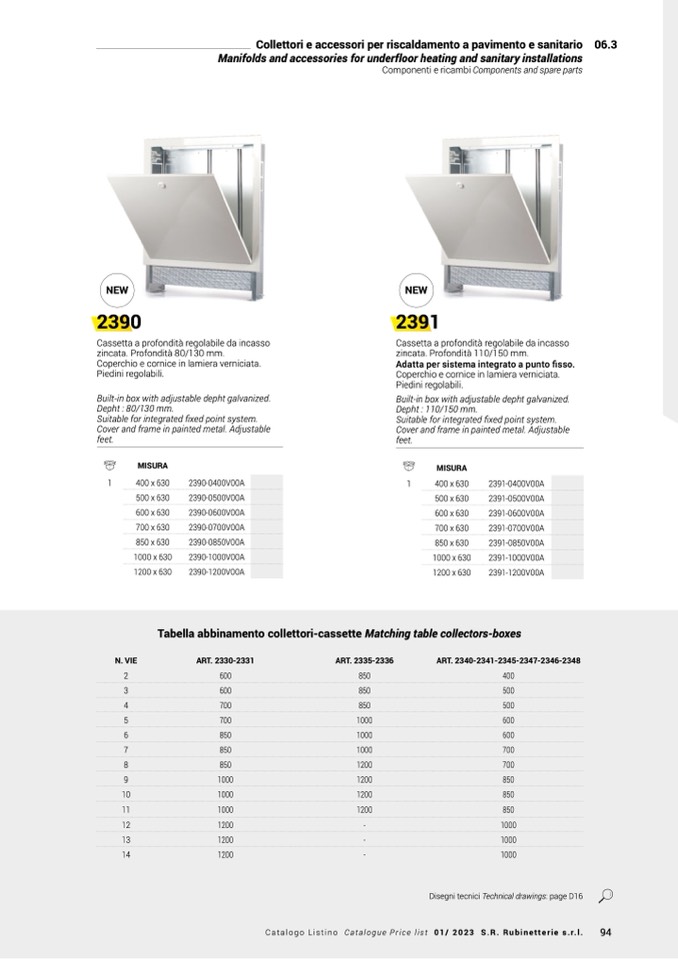

Collettori e accessori per riscaldamento a pavimento e sanitario 06.3

Manifolds and accessories for underfloor heating and sanitary installations

Componenti e ricambi Components and spare parts

NEW

2391

Cassetta a profondità regolabile da incasso

zincata. Profondità 110/150 mm.

Adatta per sistema integrato a punto fisso.

Coperchio e cornice in lamiera verniciata.

Piedini regolabili.

Built-in box with adjustable depht galvanized.

Depht : 110/150 mm.

Suitable for integrated fixed point system.

Cover and frame in painted metal. Adjustable

feet.

NEW

2390

Cassetta a profondità regolabile da incasso

zincata. Profondità 80/130 mm.

Coperchio e cornice in lamiera verniciata.

Piedini regolabili.

Built-in box with adjustable depht galvanized.

Depht : 80/130 mm.

Suitable for integrated fixed point system.

Cover and frame in painted metal. Adjustable

feet.

MISURA

1

400 x 630

500 x 630

600 x 630

700 x 630

850 x 630

1000 x 630

1200 x 630

2390-0400V00A

2390-0500V00A

2390-0600V00A

2390-0700V00A

2390-0850V00A

2390-1000V00A

2390-1200V00A

1

MISURA

400 x 630

500 x 630

600 x 630

700 x 630

850 x 630

1000 x 630

1200 x 630

2391-0400V00A

2391-0500V00A

2391-0600V00A

2391-0700V00A

2391-0850V00A

2391-1000V00A

2391-1200V00A

N. VIE

2

3

4

5

6

7

8

9

10

11

12

13

14

ART. 2330-2331

600

600

700

700

850

850

850

1000

1000

1000

1200

1200

1200

ART. 2335-2336

850

850

850

1000

1000

1000

1200

1200

1200

1200

-

-

-

ART. 2340-2341-2345-2347-2346-2348

400

500

500

600

600

700

700

850

850

850

1000

1000

1000

Tabella abbinamento collettori-cassette Matching table collectors-boxes

Disegni tecnici Technical drawings: page D16

Catalogo Listino Catalogue Price list 01/ 2023 S.R. Rubinetterie s.r.l.
