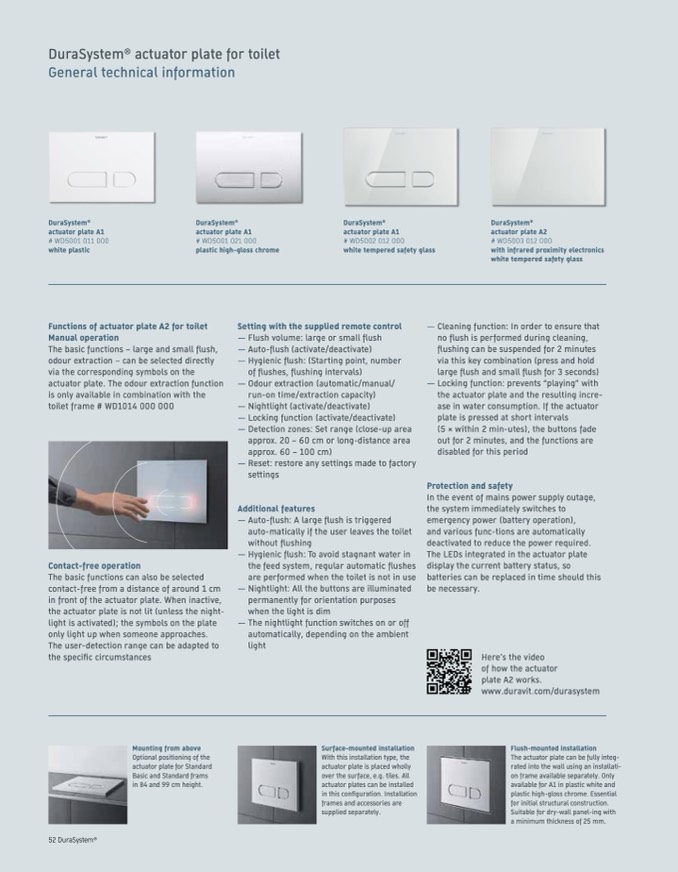

DuraSystem

®

actuator plate for toilet

General technical information

DuraSystem

®

actuator plate A1

# WD5001 011 000

white plastic

DuraSystem

®

actuator plate A1

# WD5001 021 000

plastic high-gloss chrome

DuraSystem

®

actuator plate A1

# WD5002 012 000

white tempered safety glass

DuraSystem

®

actuator plate A2

# WD5003 012 000

with infrared proximity electronics

white tempered safety glass

Cleaning function: In order to ensure that

no flush is performed during cleaning,

flushing can be suspended for 2 minutes

via this key combination (press and hold

large flush and small flush for 3 seconds)

Locking function: prevents “playing” with

the actuator plate and the resulting incre-

ase in water consumption. If the actuator

plate is pressed at short intervals

(5 × within 2 min-utes), the buttons fade

out for 2 minutes, and the functions are

disabled for this period

Functions of actuator plate A2 for toilet

Manual operation

The basic functions – large and small flush,

odour extraction – can be selected directly

via the corresponding symbols on the

actuator plate. The odour extraction function

is only available in combination with the

toilet frame # WD1014 000 000

Setting with the supplied remote control

— Flush volume: large or small flush

— Auto-flush (activate/deactivate)

— Hygienic flush: (Starting point, number

of flushes, flushing intervals)

— Odour extraction (automatic/manual/

run-on time/extraction capacity)

— Nightlight (activate/deactivate)

— Locking function (activate/deactivate)

— Detection zones: Set range (close-up area

approx. 20 – 60 cm or long-distance area

approx. 60 – 100 cm)

— Reset: restore any settings made to factory

settings

Additional features

— Auto-flush: A large flush is triggered

auto-matically if the user leaves the toilet

without flushing

— Hygienic flush: To avoid stagnant water in

the feed system, regular automatic flushes

are performed when the toilet is not in use

— Nightlight: All the buttons are illuminated

permanently for orientation purposes

when the light is dim

— The nightlight function switches on or off

automatically, depending on the ambient

light

Surface-mounted installation

With this installation type, the

actuator plate is placed wholly

over the surface, e.g. tiles. All

actuator plates can be installed

in this configuration. Installation

frames and accessories are

supplied separately.

—

—

Contact-free operation

The basic functions can also be selected

contact-free from a distance of around 1 cm

in front of the actuator plate. When inactive,

the actuator plate is not lit (unless the night-

light is activated); the symbols on the plate

only light up when someone approaches.

The user-detection range can be adapted to

the specific circumstances

Mounting from above

Optional positioning of the

actuator plate for Standard

Basic and Standard frams

in 84 and 99 cm height.

Protection and safety

In the event of mains power supply outage,

the system immediately switches to

emergency power (battery operation),

and various func-tions are automatically

deactivated to reduce the power required.

The LEDs integrated in the actuator plate

display the current battery status, so

batteries can be replaced in time should this

be necessary.

Here’s the video

of how the actuator

plate A2 works.

www.duravit.com/durasystem

Flush-mounted installation

The actuator plate can be fully integ-

rated into the wall using an installati-

on frame available separately. Only

available for A1 in plastic white and

plastic high-gloss chrome. Essential

for initial structural construction.

Suitable for dry-wall panel-ing with

a minimum thickness of 25 mm.

52 DuraSystem

®
