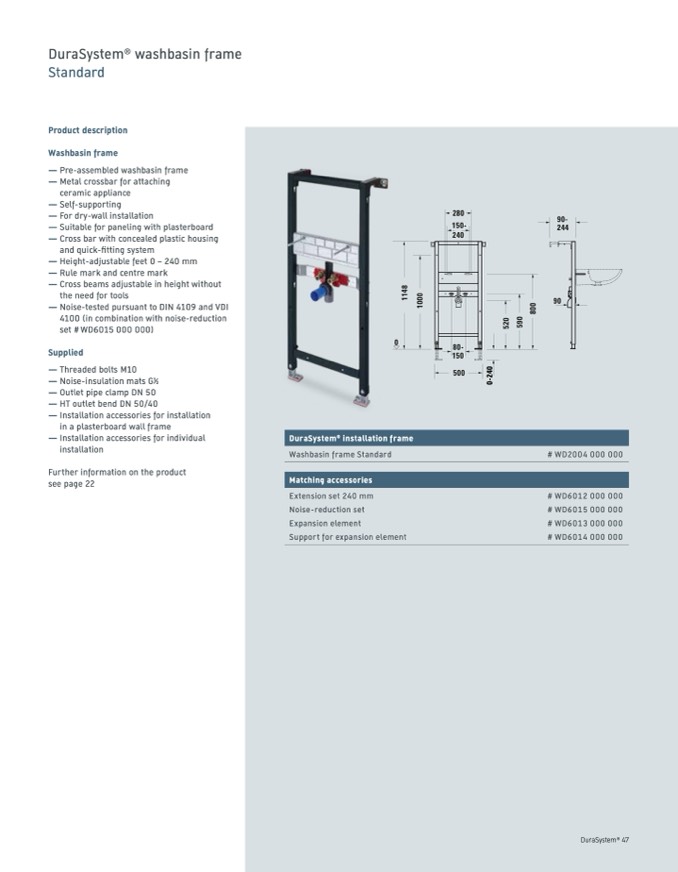

DuraSystem

®

washbasin frame

Standard

Product description

Washbasin frame

— Pre-assembled washbasin frame

— Metal crossbar for attaching

ceramic appliance

— Self-supporting

— For dry-wall installation

— Suitable for paneling with plasterboard

— Cross bar with concealed plastic housing

and quick-fitting system

— Height-adjustable feet 0 – 240 mm

— Rule mark and centre mark

— Cross beams adjustable in height without

the need for tools

— Noise-tested pursuant to DIN 4109 and VDI

4100 (in combination with noise-reduction

set # WD6015 000 000)

Supplied

— Threaded bolts M10

— Noise-insulation mats G1⁄2

— Outlet pipe clamp DN 50

— HT outlet bend DN 50/40

— Installation accessories for installation

in a plasterboard wall frame

— Installation accessories for individual

installation

Further information on the product

see page 22

280

150-

240

80-

150

500

90-

244

90

0

DuraSystem

®

installation frame

Washbasin frame Standard

Matching accessories

Extension set 240 mm

Noise-reduction set

Expansion element

Support for expansion element

# WD2004 000 000

# WD6012 000 000

# WD6015 000 000

# WD6013 000 000

# WD6014 000 000

0

-

2

4

0

5

2

0

5

9

0

8

0

0

1

1

4

8

1

0

0

0

DuraSystem

®

47
