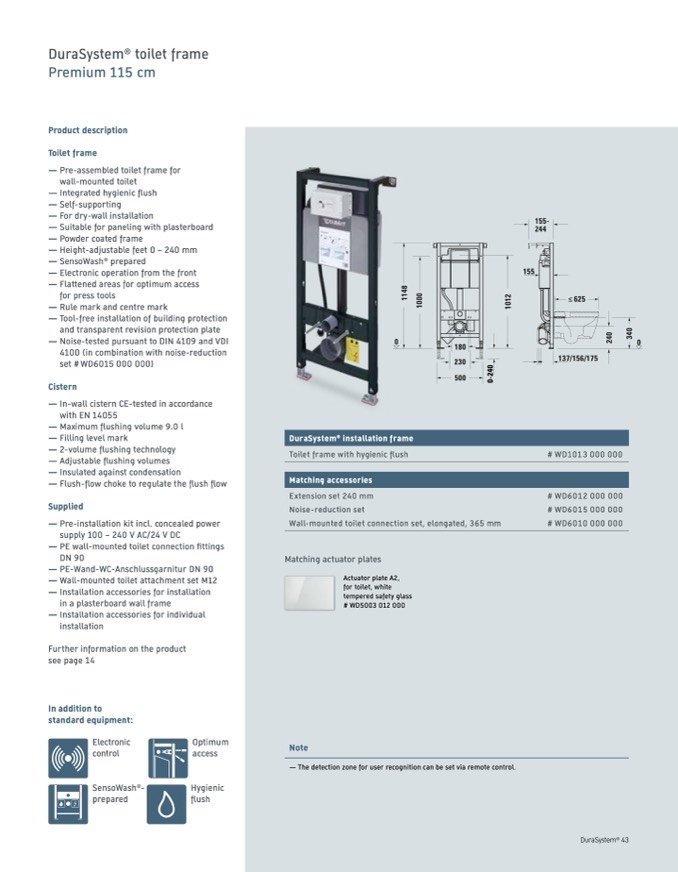

DuraSystem

®

toilet frame

Premium 115 cm

Product description

Toilet frame

— Pre-assembled toilet frame for

wall-mounted toilet

— Integrated hygienic flush

— Self-supporting

— For dry-wall installation

— Suitable for paneling with plasterboard

— Powder coated frame

— Height-adjustable feet 0 − 240 mm

— SensoWash

®

prepared

— Electronic operation from the front

— Flattened areas for optimum access

for press tools

— Rule mark and centre mark

— Tool-free installation of building protection

and transparent revision protection plate

— Noise-tested pursuant to DIN 4109 and VDI

4100 (in combination with noise-reduction

set # WD6015 000 000)

Cistern

— In-wall cistern CE-tested in accordance

with EN 14055

— Maximum flushing volume 9.0 l

— Filling level mark

— 2-volume flushing technology

— Adjustable flushing volumes

— Insulated against condensation

— Flush-flow choke to regulate the flush flow

Supplied

— Pre-installation kit incl. concealed power

supply 100 – 240 V AC/24 V DC

— PE wall-mounted toilet connection fittings

DN 90

— PE-Wand-WC-Anschlussgarnitur DN 90

— Wall-mounted toilet attachment set M12

— Installation accessories for installation

in a plasterboard wall frame

— Installation accessories for individual

0

DuraSystem

®

installation frame

Toilet frame with hygienic flush

Matching accessories

180

230

500

155-

244

155

≥ 625

137/156/175

# WD1013 000 000

# WD6012 000 000

# WD6015 000 000

# WD6010 000 000

0

0

-

2

4

0

2

4

0

3

4

0

1

1

4

8

1

0

0

0

1

0

1

2

installation

Further information on the product

see page 14

In addition to

standard equipment:

Electronic

control

SensoWash

®

-

prepared

Optimum

access

Hygienic

flush

Note

— The detection zone for user recognition can be set via remote control.

Extension set 240 mm

Noise-reduction set

Wall-mounted toilet connection set, elongated, 365 mm

Matching actuator plates

Actuator plate A2,

for toilet, white

tempered safety glass

# WD5003 012 000
