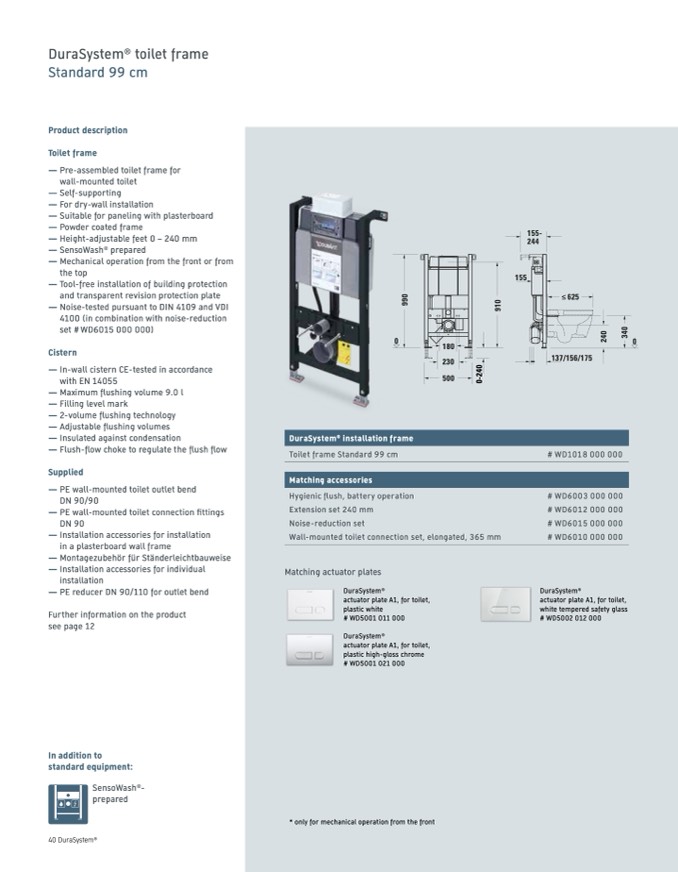

DuraSystem
®
toilet frame
Standard 99 cm
Product description
Toilet frame
— Pre-assembled toilet frame for
wall-mounted toilet
— Self-supporting
— For dry-wall installation
— Suitable for paneling with plasterboard
— Powder coated frame
— Height-adjustable feet 0 – 240 mm
— SensoWash
®
prepared
— Mechanical operation from the front or from
the top
— Tool-free installation of building protection
and transparent revision protection plate
— Noise-tested pursuant to DIN 4109 and VDI
4100 (in combination with noise-reduction
set # WD6015 000 000)
Cistern
— In-wall cistern CE-tested in accordance
with EN 14055
— Maximum flushing volume 9.0 l
— Filling level mark
— 2-volume flushing technology
— Adjustable flushing volumes
— Insulated against condensation
— Flush-flow choke to regulate the flush flow
Supplied
— PE wall-mounted toilet outlet bend
DN 90/90
— PE wall-mounted toilet connection fittings
DN 90
— Installation accessories for installation
in a plasterboard wall frame
— Montagezubehör für Ständerleichtbauweise
— Installation accessories for individual
installation
— PE reducer DN 90/110 for outlet bend
Further information on the product
see page 12
In addition to
standard equipment:
SensoWash
®
-
prepared
155-
244
155
40 DuraSystem
®
DuraSystem
®
installation frame
Toilet frame Standard 99 cm
Matching accessories
Hygienic flush, battery operation
Extension set 240 mm
Noise-reduction set
Wall-mounted toilet connection set, elongated, 365 mm
Matching actuator plates
DuraSystem
®
actuator plate A1, for toilet,
plastic white
# WD5001 011 000
DuraSystem
®
actuator plate A1, for toilet,
plastic high-gloss chrome
# WD5001 021 000
* only for mechanical operation from the front
0
180
0
230
500
137/156/175
# WD1018 000 000
# WD6003 000 000
# WD6012 000 000
# WD6015 000 000
# WD6010 000 000
DuraSystem
®
actuator plate A1, for toilet,
white tempered safety glass
# WD5002 012 000
≥ 625
0
-
2
4
0
2
4
0
3
4
0
9
9
0
9
1
0
