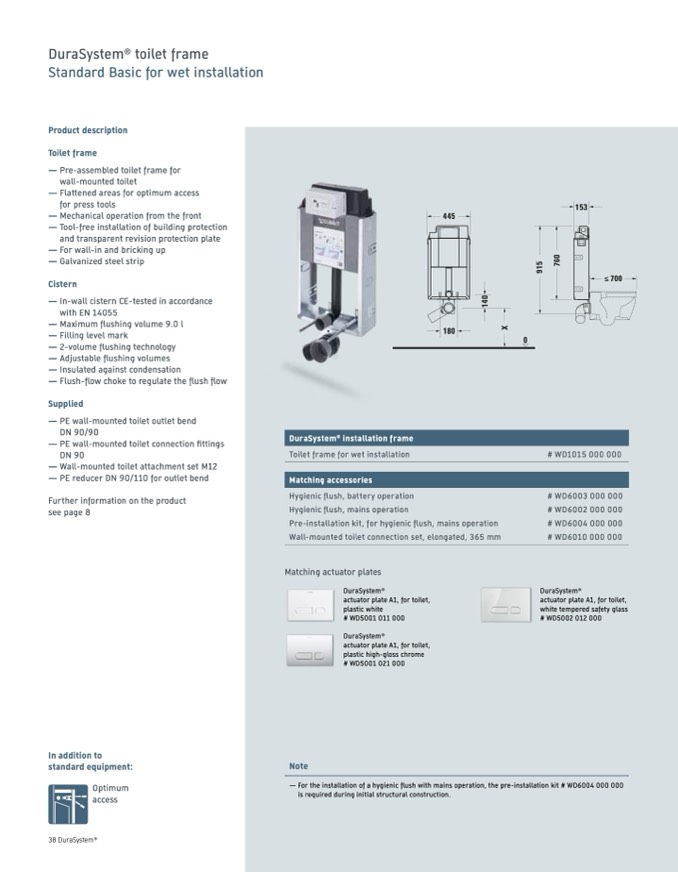

DuraSystem

®

toilet frame

Standard Basic for wet installation

Product description

Toilet frame

— Pre-assembled toilet frame for

wall-mounted toilet

— Flattened areas for optimum access

for press tools

— Mechanical operation from the front

— Tool-free installation of building protection

and transparent revision protection plate

— For wall-in and bricking up

— Galvanized steel strip

Cistern

— In-wall cistern CE-tested in accordance

with EN 14055

— Maximum flushing volume 9.0 l

— Filling level mark

— 2-volume flushing technology

— Adjustable flushing volumes

— Insulated against condensation

— Flush-flow choke to regulate the flush flow

Supplied

— PE wall-mounted toilet outlet bend

DN 90/90

— PE wall-mounted toilet connection fittings

DN 90

— Wall-mounted toilet attachment set M12

— PE reducer DN 90/110 for outlet bend

Further information on the product

see page 8

445

180

153

≥ 700

1

4

0

X

9

1

5

7

6

0

In addition to

standard equipment:

Optimum

access

Note

38 DuraSystem

®

DuraSystem

®

installation frame

Toilet frame for wet installation

Matching accessories

# WD1015 000 000

# WD6003 000 000

# WD6002 000 000

# WD6004 000 000

# WD6010 000 000

DuraSystem

®

actuator plate A1, for toilet,

white tempered safety glass

# WD5002 012 000

Hygienic flush, battery operation

Hygienic flush, mains operation

Pre-installation kit, for hygienic flush, mains operation

Wall-mounted toilet connection set, elongated, 365 mm

Matching actuator plates

DuraSystem

®

actuator plate A1, for toilet,

plastic white

# WD5001 011 000

DuraSystem

®

actuator plate A1, for toilet,

plastic high-gloss chrome

# WD5001 021 000

— For the installation of a hygienic flush with mains operation, the pre-installation kit # WD6004 000 000

is required during initial structural construction.
