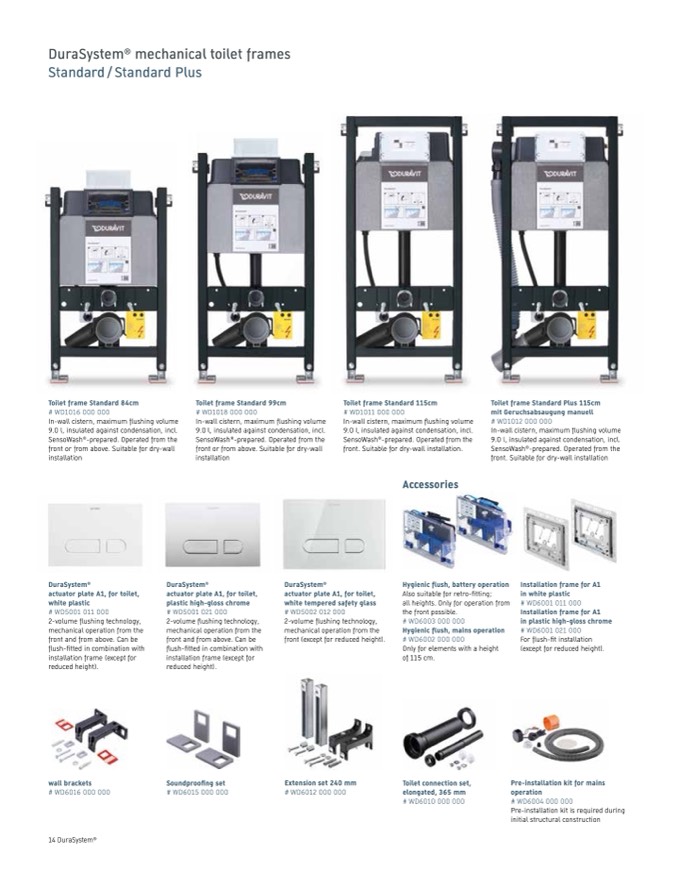

DuraSystem

®

mechanical toilet frames

Standard / Standard Plus

Toilet frame Standard 84cm

# WD1016 000 000

In-wall cistern, maximum flushing volume

9.0 l, insulated against condensation, incl.

SensoWash

®

-prepared. Operated from the

front or from above. Suitable for dry-wall

installation

Toilet frame Standard 99cm

# WD1018 000 000

In-wall cistern, maximum flushing volume

9.0 l, insulated against condensation, incl.

SensoWash

®

-prepared. Operated from the

front or from above. Suitable for dry-wall

installation

Toilet frame Standard 115cm

# WD1011 000 000

In-wall cistern, maximum flushing volume

9.0 l, insulated against condensation, incl.

SensoWash

®

-prepared. Operated from the

front. Suitable for dry-wall installation.

Toilet frame Standard Plus 115cm

mit Geruchsabsaugung manuell

# WD1012 000 000

In-wall cistern, maximum flushing volume

9.0 l, insulated against condensation, incl.

SensoWash

®

-prepared. Operated from the

front. Suitable for dry-wall installation

DuraSystem

®

actuator plate A1, for toilet,

white plastic

# WD5001 011 000

2-volume flushing technology,

mechanical operation from the

front and from above. Can be

flush-fitted in combination with

installation frame (except for

reduced height).

wall brackets

# WD6016 000 000

DuraSystem

®

actuator plate A1, for toilet,

plastic high-gloss chrome

# WD5001 021 000

2-volume flushing technology,

mechanical operation from the

front and from above. Can be

flush-fitted in combination with

installation frame (except for

reduced height).

Soundproofing set

# WD6015 000 000

DuraSystem

®

actuator plate A1, for toilet,

white tempered safety glass

# WD5002 012 000

2-volume flushing technology,

mechanical operation from the

front (except for reduced height).

Extension set 240 mm

# WD6012 000 000

Accessories

Hygienic flush, battery operation

Also suitable for retro-fitting;

all heights. Only for operation from

the front possible.

# WD6003 000 000

Hygienic flush, mains operation

# WD6002 000 000

Only for elements with a height

of 115 cm.

Toilet connection set,

elongated, 365 mm

# WD6010 000 000

Installation frame for A1

in white plastic

# WD6001 011 000

Installation frame for A1

in plastic high-gloss chrome

# WD6001 021 000

For flush-fit installation

(except for reduced height).

Pre-installation kit for mains

operation

# WD6004 000 000

Pre-installation kit is required during

initial structural construction

14 DuraSystem

®
