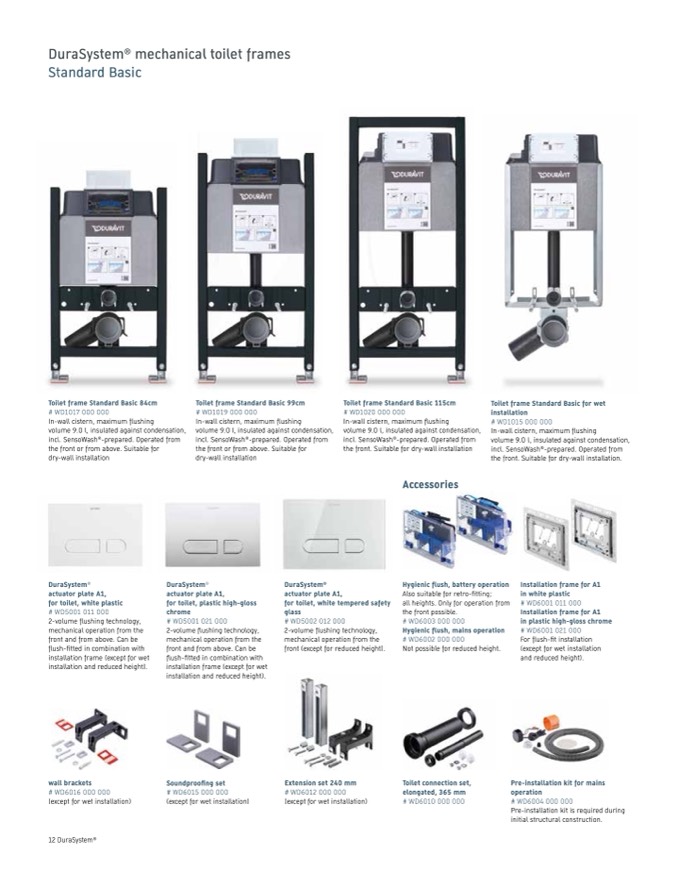

DuraSystem

®

mechanical toilet frames

Standard Basic

Toilet frame Standard Basic 84cm

# WD1017 000 000

In-wall cistern, maximum flushing

volume 9.0 l, insulated against condensation,

incl. SensoWash

®

-prepared. Operated from

the front or from above. Suitable for

dry-wall installation

Toilet frame Standard Basic 99cm

# WD1019 000 000

In-wall cistern, maximum flushing

volume 9.0 l, insulated against condensation,

incl. SensoWash

®

-prepared. Operated from

the front or from above. Suitable for

dry-wall installation

Toilet frame Standard Basic 115cm

# WD1020 000 000

In-wall cistern, maximum flushing

volume 9.0 l, insulated against condensation,

incl. SensoWash

®

-prepared. Operated from

the front. Suitable for dry-wall installation

Toilet frame Standard Basic for wet

installation

# WD1015 000 000

In-wall cistern, maximum flushing

volume 9.0 l, insulated against condensation,

incl. SensoWash

®

-prepared. Operated from

the front. Suitable for dry-wall installation.

DuraSystem

®

actuator plate A1,

for toilet, white plastic

# WD5001 011 000

2-volume flushing technology,

mechanical operation from the

front and from above. Can be

flush-fitted in combination with

installation frame (except for wet

installation and reduced height).

wall brackets

# WD6016 000 000

(except for wet installation)

DuraSystem

®

actuator plate A1,

for toilet, plastic high-gloss

chrome

# WD5001 021 000

2-volume flushing technology,

mechanical operation from the

front and from above. Can be

flush-fitted in combination with

installation frame (except for wet

installation and reduced height).

Soundproofing set

# WD6015 000 000

(except for wet installation)

DuraSystem

®

actuator plate A1,

for toilet, white tempered safety

glass

# WD5002 012 000

2-volume flushing technology,

mechanical operation from the

front (except for reduced height).

Extension set 240 mm

# WD6012 000 000

(except for wet installation)

Accessories

Hygienic flush, battery operation

Also suitable for retro-fitting;

all heights. Only for operation from

the front possible.

# WD6003 000 000

Hygienic flush, mains operation

# WD6002 000 000

Not possible for reduced height.

Toilet connection set,

elongated, 365 mm

# WD6010 000 000

Installation frame for A1

in white plastic

# WD6001 011 000

Installation frame for A1

in plastic high-gloss chrome

# WD6001 021 000

For flush-fit installation

(except for wet installation

and reduced height).

Pre-installation kit for mains

operation

# WD6004 000 000

Pre-installation kit is required during

initial structural construction.
