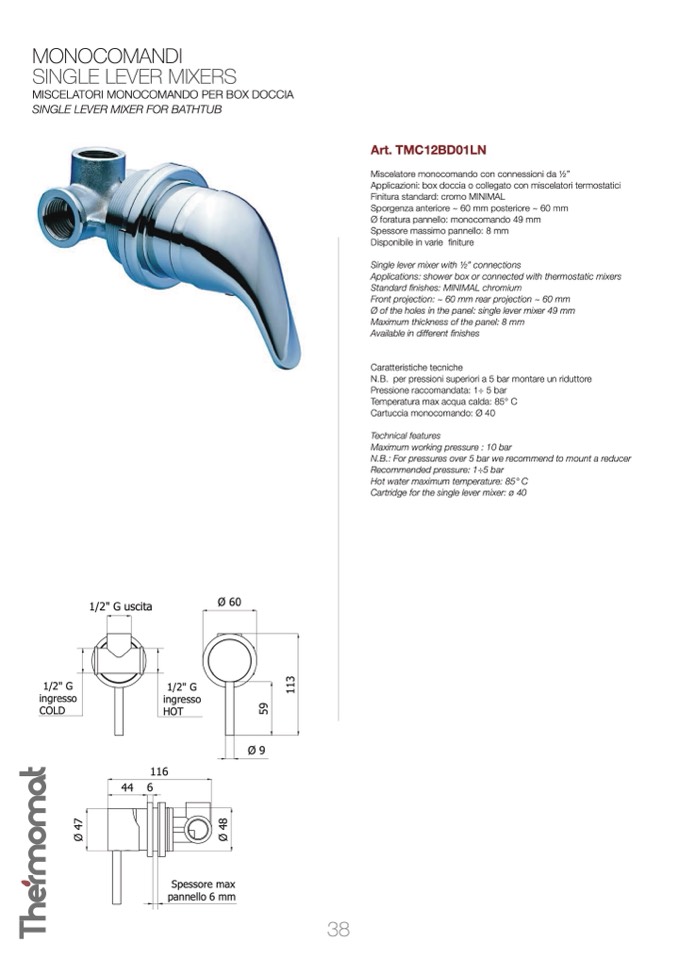

MONOCOMANDI

SINGLE LEVER MIXERS

MISCELATORI MONOCOMANDO PER BOX DOCCIA

SINGLE LEVER MIXER FOR BATHTUB

1/2" G uscita

Ø 60

Ø9

Art. TMC12BD01LN

Miscelatore monocomando con connessioni da 1⁄2”

Applicazioni: box doccia o collegato con miscelatori termostatici

Finitura standard: cromo MINIMAL

Sporgenza anteriore ~ 60 mm posteriore ~ 60 mm

Ø foratura pannello: monocomando 49 mm

Spessore massimo pannello: 8 mm

Disponibile in varie finiture

Single lever mixer with 1⁄2” connections

Applications: shower box or connected with thermostatic mixers

Standard finishes: MINIMAL chromium

Front projection: ~ 60 mm rear projection ~ 60 mm

Ø of the holes in the panel: single lever mixer 49 mm

Maximum thickness of the panel: 8 mm

Available in different finishes

Caratteristiche tecniche

N.B. per pressioni superiori a 5 bar montare un riduttore

Pressione raccomandata: 1÷ 5 bar

Temperatura max acqua calda: 85° C

Cartuccia monocomando: Ø 40

Technical features

Maximum working pressure : 10 bar

N.B.: For pressures over 5 bar we recommend to mount a reducer

Recommended pressure: 1÷5 bar

Hot water maximum temperature: 85° C

Cartridge for the single lever mixer: ø 40

1/2" G

ingresso

COLD

1/2" G

ingresso

HOT

116

44 6

p

Spessore max

annello 6 mm

38

Ø

4

7

Ø

4

8

5

9

1

1

3
