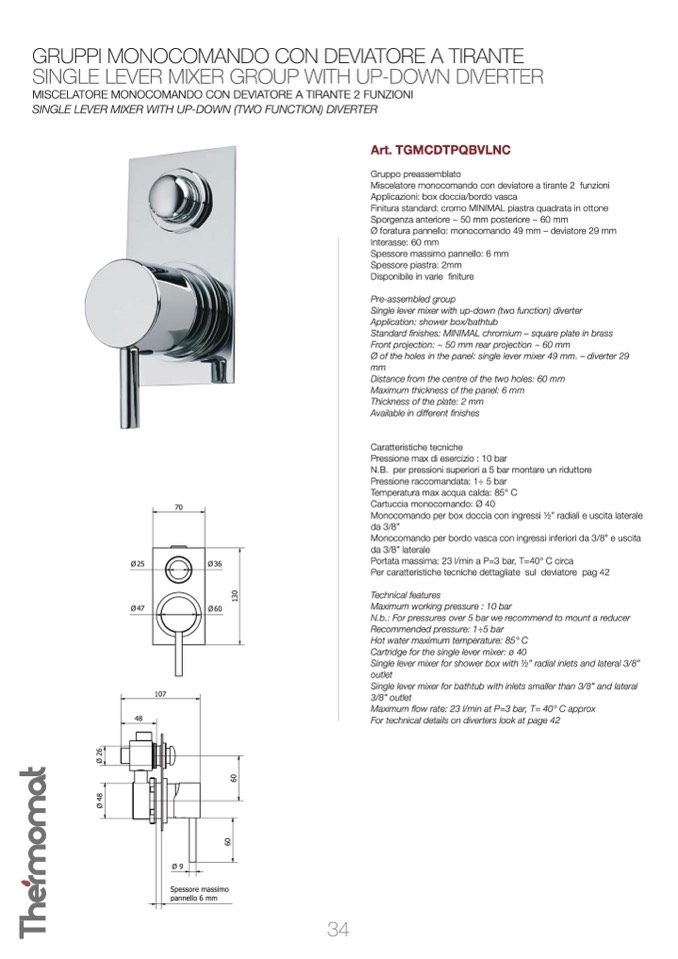

GRUPPI MONOCOMANDO CON DEVIATORE A TIRANTE

SINGLE LEVER MIXER GROUP WITH UP-DOWN DIVERTER

MISCELATORE MONOCOMANDO CON DEVIATORE A TIRANTE 2 FUNZIONI

SINGLE LEVER MIXER WITH UP-DOWN (TWO FUNCTION) DIVERTER

Ø25

Ø47

Ø36

Ø60

107

48

Ø9

70

Art. TGMCDTPQBVLNC

Gruppo preassemblato

Miscelatore monocomando con deviatore a tirante 2 funzioni

Applicazioni: box doccia/bordo vasca

Finitura standard: cromo MINIMAL piastra quadrata in ottone

Sporgenza anteriore ~ 50 mm posteriore ~ 60 mm

Ø foratura pannello: monocomando 49 mm – deviatore 29 mm

Interasse: 60 mm

Spessore massimo pannello: 6 mm

Spessore piastra: 2mm

Disponibile in varie finiture

Pre-assembled group

Single lever mixer with up-down (two function) diverter

Application: shower box/bathtub

Standard finishes: MINIMAL chromium – square plate in brass

Front projection: ~ 50 mm rear projection ~ 60 mm

Ø of the holes in the panel: single lever mixer 49 mm. – diverter 29

mm

Distance from the centre of the two holes: 60 mm

Maximum thickness of the panel: 6 mm

Thickness of the plate: 2 mm

Available in different finishes

Caratteristiche tecniche

Pressione max di esercizio : 10 bar

N.B. per pressioni superiori a 5 bar montare un riduttore

Pressione raccomandata: 1÷ 5 bar

Temperatura max acqua calda: 85° C

Cartuccia monocomando: Ø 40

Monocomando per box doccia con ingressi 1⁄2” radiali e uscita laterale

da 3/8”

Monocomando per bordo vasca con ingressi inferiori da 3/8” e uscita

da 3/8” laterale

Portata massima: 23 l/min a P=3 bar, T=40° C circa

Per caratteristiche tecniche dettagliate sul deviatore pag 42

Technical features

Maximum working pressure : 10 bar

N.b.: For pressures over 5 bar we recommend to mount a reducer

Recommended pressure: 1÷5 bar

Hot water maximum temperature: 85° C

Cartridge for the single lever mixer: ø 40

Single lever mixer for shower box with 1⁄2” radial inlets and lateral 3/8”

outlet

Single lever mixer for bathtub with inlets smaller than 3/8” and lateral

3/8” outlet

Maximum flow rate: 23 l/min at P=3 bar, T= 40° C approx

For technical details on diverters look at page 42

6

0

6

0

1

3

0

Ø

4

8

Ø

2

6

Spessore massimo

pannello 6 mm

34
