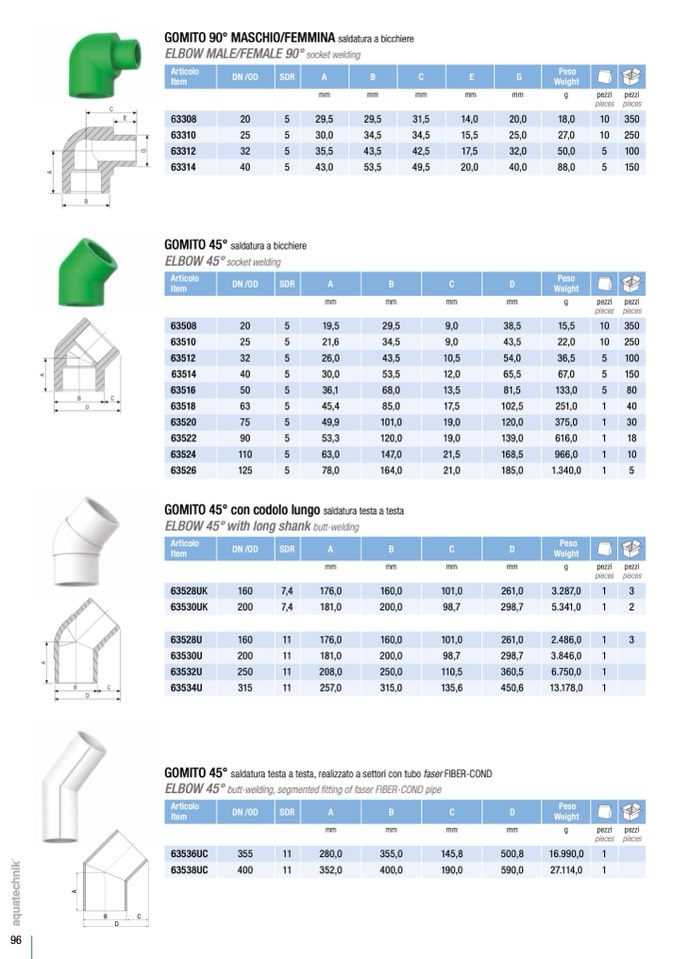

GOMITO 90° MASCHIO/FEMMINA saldatura a bicchiere
ELBOW MALE/FEMALE 90° socket welding
GOMITO 45° saldatura a bicchiere
ELBOW 45° socket welding
GOMITO 45° con codolo lungo saldatura testa a testa
ELBOW 45° with long shank butt-welding
GOMITO 45° saldatura testa a testa, realizzato a settori con tubo faser FIBER-COND
ELBOW 45° butt-welding, segmented fitting of faser FIBER-COND pipe
pezzi
pieces
pezzi
pieces
pezzi
pieces
pezzi
pieces
Articolo
Item
DN /OD
SDR
A
B
C
E
G
Peso
Weight
mm
mm
mm
mm
mm
g
pezzi
pieces
63308
20
5
29,5
29,5
31,5
14,0
20,0
18,0
10
350
63310
25
5
30,0
34,5
34,5
15,5
25,0
27,0
10
250
63312
32
5
35,5
43,5
42,5
17,5
32,0
50,0
5
100
63314
40
5
43,0
53,5
49,5
20,0
40,0
88,0
5
150
Articolo
Item
DN /OD
SDR
A
B
C
D
Peso
Weight
mm
mm
mm
mm
g
pezzi
pieces
63508
20
5
19,5
29,5
9,0
38,5
15,5
10
350
63510
25
5
21,6
34,5
9,0
43,5
22,0
10
250
63512
32
5
26,0
43,5
10,5
54,0
36,5
5
100
63514
40
5
30,0
53,5
12,0
65,5
67,0
5
150
63516
50
5
36,1
68,0
13,5
81,5
133,0
5
80
63518
63
5
45,4
85,0
17,5
102,5
251,0
1
40
63520
75
5
49,9
101,0
19,0
120,0
375,0
1
30
63522
90
5
53,3
120,0
19,0
139,0
616,0
1
18
63524
110
5
63,0
147,0
21,5
168,5
966,0
1
10
63526
125
5
78,0
164,0
21,0
185,0
1.340,0
1
5
Articolo
Item
DN /OD
SDR
A
B
C
D
Peso
Weight
mm
mm
mm
mm
g
pezzi
pieces
63528UK
160
7,4
176,0
160,0
101,0
261,0
3.287,0
1
3
63530UK
200
7,4
181,0
200,0
98,7
298,7
5.341,0
1
2
63528U
160
11
176,0
160,0
101,0
261,0
2.486,0
1
3
63530U
200
11
181,0
200,0
98,7
298,7
3.846,0
1
63532U
250
11
208,0
250,0
110,5
360,5
6.750,0
1
63534U
315
11
257,0
315,0
135,6
450,6
13.178,0
1
Articolo
Item
DN /OD
SDR
A
B
C
D
Peso
Weight
mm
mm
mm
mm
g
pezzi
pieces
63536UC
355
11
280,0
355,0
145,8
500,8
16.990,0
1
63538UC
400
11
352,0
400,0
190,0
590,0
27.114,0
1
