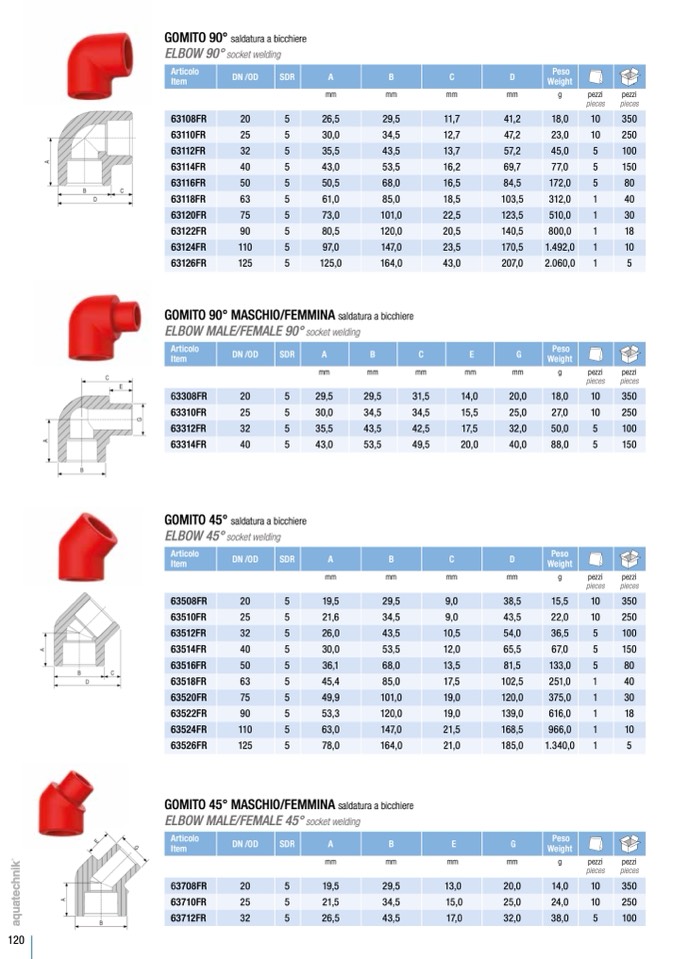

GOMITO 90° saldatura a bicchiere
ELBOW 90° socket welding
Articolo
Item
63108FR
63110FR
63112FR
63114FR
63116FR
63118FR
63120FR
63122FR
63124FR
63126FR
DN /OD
20
25
32
40
50
63
75
90
110
125
SDR
5
5
5
5
5
5
5
5
5
5
A
mm
26,5
30,0
35,5
43,0
50,5
61,0
73,0
80,5
97,0
125,0
B
mm
29,5
34,5
43,5
53,5
68,0
85,0
101,0
120,0
147,0
164,0
C
mm
11,7
12,7
13,7
16,2
16,5
18,5
22,5
20,5
23,5
43,0
D
mm
41,2
47,2
57,2
69,7
84,5
103,5
123,5
140,5
170,5
207,0
Peso
Weight
g
18,0
23,0
45,0
77,0
172,0
312,0
510,0
800,0
1.492,0
2.060,0
pezzi
pieces
10
10
5
5
5
1
1
1
1
1
mm
350
250
100
150
80
40
30
18
10
5
pezzi
pieces
GOMITO 90° MASCHIO/FEMMINA saldatura a bicchiere
ELBOW MALE/FEMALE 90° socket welding
Articolo
Item
63308FR
63310FR
63312FR
63314FR
DN /OD
20
25
32
40
SDR
5
5
5
5
A
mm
29,5
30,0
35,5
43,0
B
mm
29,5
34,5
43,5
53,5
C
mm
31,5
34,5
42,5
49,5
15,5
17,5
20,0
E
mm
14,0
G
mm
20,0
25,0
32,0
40,0
Peso
Weight
g
18,0
27,0
50,0
88,0
pezzi
pieces
10
10
5
5
350
250
100
150
pezzi
pieces
GOMITO 45° saldatura a bicchiere
ELBOW 45° socket welding
Articolo
Item
63508FR
63510FR
63512FR
63514FR
63516FR
63518FR
63520FR
63522FR
63524FR
63526FR
DN /OD
20
25
32
40
50
63
75
90
110
125
SDR
5
5
5
5
5
5
5
5
5
5
A
mm
19,5
21,6
26,0
30,0
36,1
45,4
49,9
53,3
63,0
78,0
B
mm
29,5
34,5
43,5
53,5
68,0
85,0
101,0
120,0
147,0
164,0
C
mm
9,0
9,0
10,5
12,0
13,5
17,5
19,0
19,0
21,5
21,0
D
mm
38,5
43,5
54,0
65,5
81,5
102,5
120,0
139,0
168,5
185,0
Peso
Weight
g
15,5
22,0
36,5
67,0
133,0
251,0
375,0
616,0
966,0
1.340,0
pezzi
pieces
10
10
5
5
5
1
1
1
1
1
350
250
100
150
80
40
30
18
10
5
pezzi
pieces
GOMITO 45° MASCHIO/FEMMINA saldatura a bicchiere
ELBOW MALE/FEMALE 45° socket welding
Articolo
Item
63708FR
63710FR
63712FR
DN /OD
20
25
32
SDR
5
5
5
A
mm
19,5
21,5
26,5
B
mm
29,5
34,5
43,5
E
mm
13,0
15,0
17,0
G
mm
20,0
25,0
32,0
Peso
Weight
g
14,0
24,0
38,0
pezzi
pieces
10
10
5
350
250
100
pezzi
pieces
120
