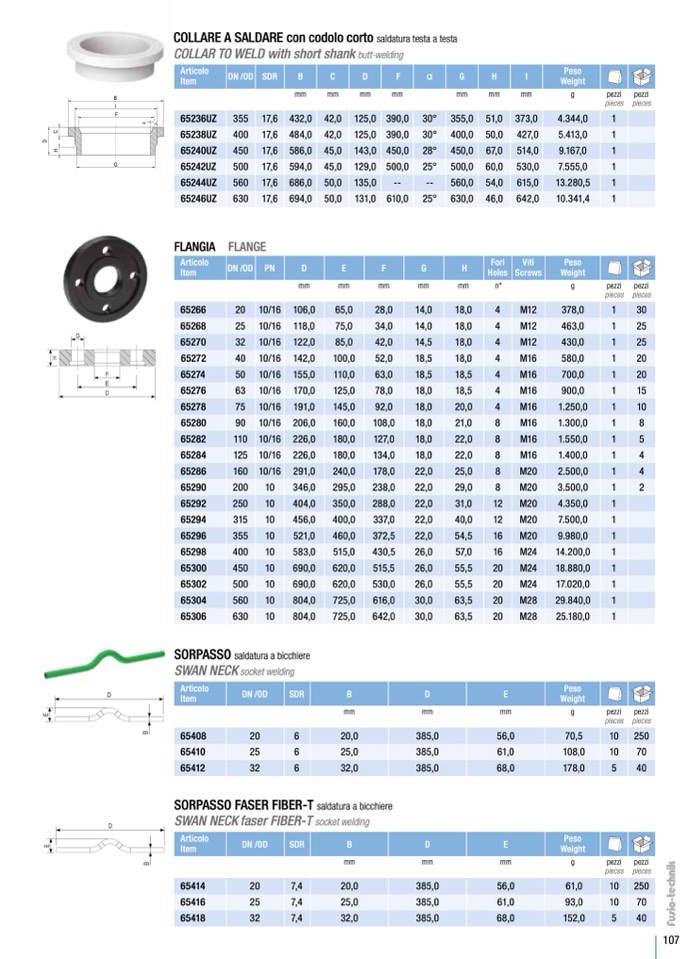

COLLARE A SALDARE con codolo corto saldatura testa a testa
COLLAR TO WELD with short shank butt-welding
FLANGIA FLANGE
SORPASSO saldatura a bicchiere
SWAN NECK socket welding
SORPASSO FASER FIBER-T saldatura a bicchiere
SWAN NECK faser FIBER-T socket welding
pezzi
pieces
pezzi
pieces
pezzi
pieces
107
Articolo
Item
DN /OD
SDR
B
C
D
F
α
G
H
I
Peso
Weight
mm
mm
mm
mm
mm
mm
mm
g
pezzi
pieces
65236UZ
355
17,6
432,0
42,0
125,0
390,0
30°
355,0
51,0
373,0
4.344,0
1
65238UZ
400
17,6
484,0
42,0
125,0
390,0
30°
400,0
50,0
427,0
5.413,0
1
65240UZ
450
17,6
586,0
45,0
143,0
450,0
28°
450,0
67,0
514,0
9.167,0
1
65242UZ
500
17,6
594,0
45,0
129,0
500,0
25°
500,0
60,0
530,0
7.555,0
1
65244UZ
560
17,6
686,0
50,0
135,0
--
--
560,0
54,0
615,0
13.280,5
1
65246UZ
630
17,6
694,0
50,0
131,0
610,0
25°
630,0
46,0
642,0
10.341,4
1
F
α
D
H
C
Articolo
Item
DN /OD
PN
D
E
F
G
H
Fori
Holes
Viti
Screws
Peso
Weight
mm
mm
mm
mm
mm
n°
g
pezzi
pieces
65266
20
10/16
106,0
65,0
28,0
14,0
18,0
4
M12
378,0
1
30
65268
25
10/16
118,0
75,0
34,0
14,0
18,0
4
M12
463,0
1
25
65270
32
10/16
122,0
85,0
42,0
14,5
18,0
4
M12
430,0
1
25
65272
40
10/16
142,0
100,0
52,0
18,5
18,0
4
M16
580,0
1
20
65274
50
10/16
155,0
110,0
63,0
18,5
18,5
4
M16
700,0
1
20
65276
63
10/16
170,0
125,0
78,0
18,0
18,5
4
M16
900,0
1
15
65278
75
10/16
191,0
145,0
92,0
18,0
20,0
4
M16
1.250,0
1
10
65280
90
10/16
206,0
160,0
108,0
18,0
21,0
8
M16
1.300,0
1
8
65282
110
10/16
226,0
180,0
127,0
18,0
22,0
8
M16
1.550,0
1
5
65284
125
10/16
226,0
180,0
134,0
18,0
22,0
8
M16
1.400,0
1
4
65286
160
10/16
291,0
240,0
178,0
22,0
25,0
8
M20
2.500,0
1
4
65290
200
10
346,0
295,0
238,0
22,0
29,0
8
M20
3.500,0
1
2
65292
250
10
404,0
350,0
288,0
22,0
31,0
12
M20
4.350,0
1
65294
315
10
456,0
400,0
337,0
22,0
40,0
12
M20
7.500,0
1
65296
355
10
521,0
460,0
372,5
22,0
54,5
16
M20
9.980,0
1
65298
400
10
583,0
515,0
430,5
26,0
57,0
16
M24
14.200,0
1
65300
450
10
690,0
620,0
515,5
26,0
55,5
20
M24
18.880,0
1
65302
500
10
690,0
620,0
530,0
26,0
55,5
20
M24
17.020,0
1
65304
560
10
804,0
725,0
616,0
30,0
63,5
20
M28
29.840,0
1
65306
630
10
804,0
725,0
642,0
30,0
63,5
20
M28
25.180,0
1
Articolo
Item
DN /OD
SDR
B
D
E
Peso
Weight
mm
mm
mm
g
pezzi
pieces
65408
20
6
20,0
385,0
56,0
70,5
10
250
65410
25
6
25,0
385,0
61,0
108,0
10
70
65412
32
6
32,0
385,0
68,0
178,0
5
40
Articolo
Item
DN /OD
SDR
B
D
E
Peso
Weight
mm
mm
mm
g
pezzi
pieces
65414
20
7,4
20,0
385,0
56,0
61,0
10
250
65416
25
7,4
25,0
385,0
61,0
93,0
10
70
65418
32
7,4
32,0
385,0
68,0
152,0
5
40
