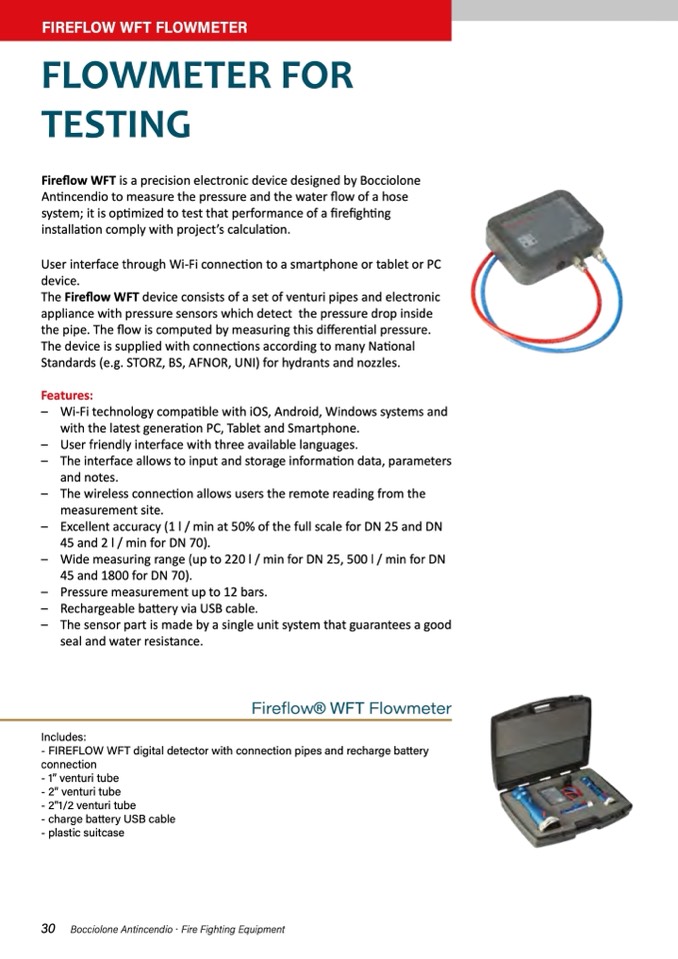

FIREFLOW WFT FLOWMETER

FLOWMETER FOR

TESTING

Fireflow WFT is a precision electronic device designed by Bocciolone

Antincendio to measure the pressure and the water flow of a hose

system; it is optimized to test that performance of a firefigh

ting

installation comply with project’s calculation.

User interface through Wi-Fi connection to a smartphone or tablet or PC

device.

The Fireflow WFT device consists of a set of venturi pipes and electronic

appliance with pressure sensors which detect the pressure drop inside

the pipe. The flow is computed by measuring this differential pressure.

The device is supplied with connections according to many National

Standards (e.g. STORZ, BS, AFNOR, UNI) for hydrants and nozzles.

Features:

– Wi-Fi technology compatible with iOS, Android, Windows systems and

with the latest generation PC, Tablet and Smartphone.

– User friendly interface with three available languages.

– The interface allows to input and storage information data, parameters

and notes.

– The wireless connection allows users the remote reading from the

measurement site.

– Excellent accuracy (1 l / min at 50% of the full scale for DN 25 and DN

45 and 2 l / min for DN 70).

– Wide measuring range (up to 220 l / min for DN 25, 500 l / min for DN

45 and 1800 for DN 70).

– Pressure measurement up to 12 bars.

– Rechargeable battery via USB cable.

– The sensor part is made by a single unit system that guarantees a good

seal and water resistance.

Fireflow® WFT Flowmeter

Includes:

- FIREFLOW WFT digital detector with connection pipes and recharge battery

connection

- 1” venturi tube

- 2” venturi tube

- 2”1/2 venturi tube

- charge battery USB cable

- plastic suitcase

30 Bocciolone Antincendio · Fire Fighting Equipment
