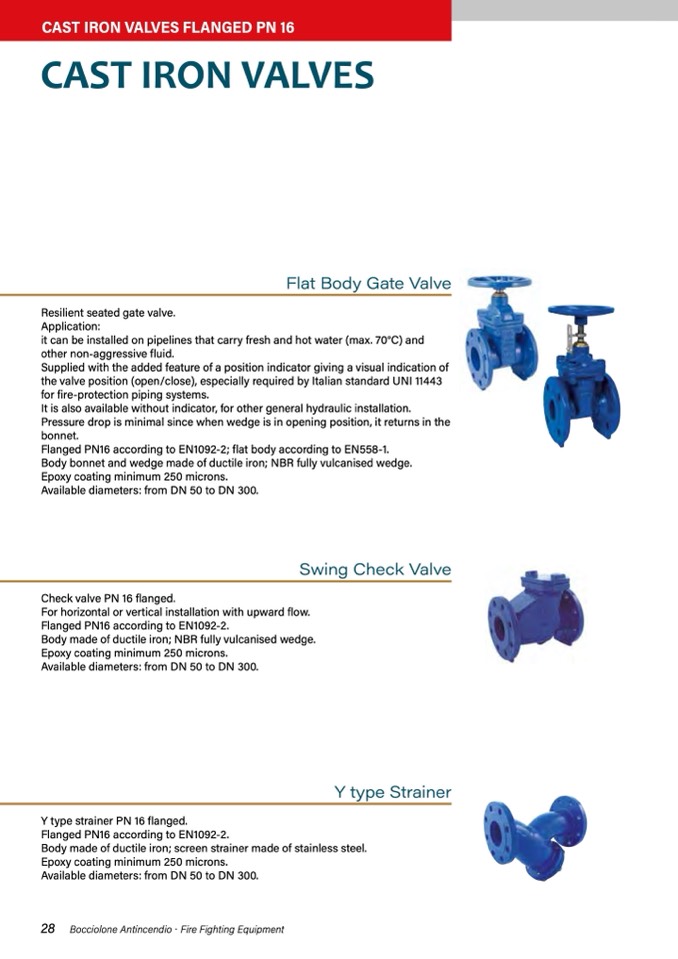

CAST IRON VALVES FLANGED PN 16

CAST IRON VALVES

Flat Body Gate Valve

Resilient seated gate valve.

Application:

it can be installed on pipelines that carry fresh and hot water (max. 70°C) and

other non-aggressive fluid.

Supplied with the added feature of a position indicator giving a visual indication of

the valve position (open/close), especially required by Italian standard UNI 11443

for fire-protection piping systems.

It is also available without indicator, for other general hydraulic installation.

Pressure drop is minimal since when wedge is in opening position, it returns in the

bonnet.

Flanged PN16 according to EN1092-2; flat body according to EN558-1.

Body bonnet and wedge made of ductile iron; NBR fully vulcanised wedge.

Epoxy coating minimum 250 microns.

Available diameters: from DN 50 to DN 300.

Swing Check Valve

Check valve PN 16 flanged.

For horizontal or vertical installation with upward flow.

Flanged PN16 according to EN1092-2.

Body made of ductile iron; NBR fully vulcanised wedge.

Epoxy coating minimum 250 microns.

Available diameters: from DN 50 to DN 300.

Y type Strainer

Y type strainer PN 16 flanged.

Flanged PN16 according to EN1092-2.

Body made of ductile iron; screen strainer made of stainless steel.

Epoxy coating minimum 250 microns.

Available diameters: from DN 50 to DN 300.
