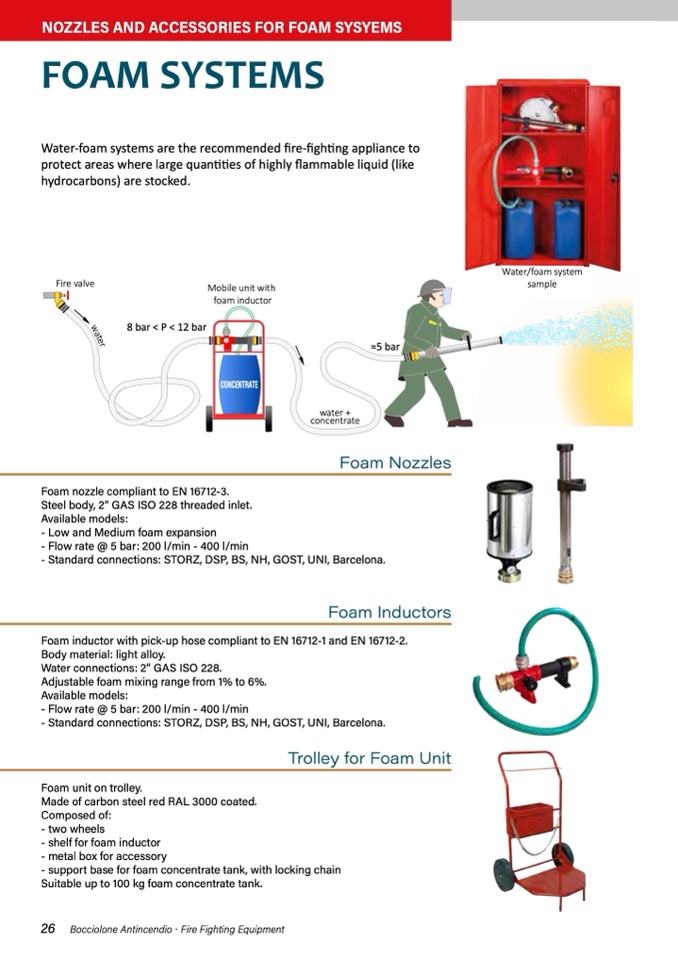

NOZZLES AND ACCESSORIES FOR FOAM SYSYEMS

FOAM SYSTEMS

Water-foam systems are the recommended fire-fighting appliance to

protect areas where large quantities of highly flammable liquid (like

hydrocarbons) are stocked.

Fire valve

Water/foam system

sample

Mobile unit with

foam inductor

8 bar < P < 12 bar

CONCENTRATE

Foam nozzle compliant to EN 16712-3.

Steel body, 2” GAS ISO 228 threaded inlet.

Available models:

- Low and Medium foam expansion

- Flow rate @ 5 bar: 200 l/min - 400 l/min

- Standard connections: STORZ, DSP, BS, NH, GOST, UNI, Barcelona.

Foam Inductors

Foam inductor with pick-up hose compliant to EN 16712-1 and EN 16712-2.

Body material: light alloy.

Water connections: 2” GAS ISO 228.

Adjustable foam mixing range from 1% to 6%.

Available models:

- Flow rate @ 5 bar: 200 l/min - 400 l/min

- Standard connections: STORZ, DSP, BS, NH, GOST, UNI, Barcelona.

Trolley for Foam Unit

Foam unit on trolley.

Made of carbon steel red RAL 3000 coated.

Composed of:

- two wheels

- shelf for foam inductor

- metal box for accessory

- support base for foam concentrate tank, with locking chain

Suitable up to 100 kg foam concentrate tank.

w

a

t

e

r

26 Bocciolone Antincendio · Fire Fighting Equipment

≈5 bar

water +

concentrate

Foam Nozzles
