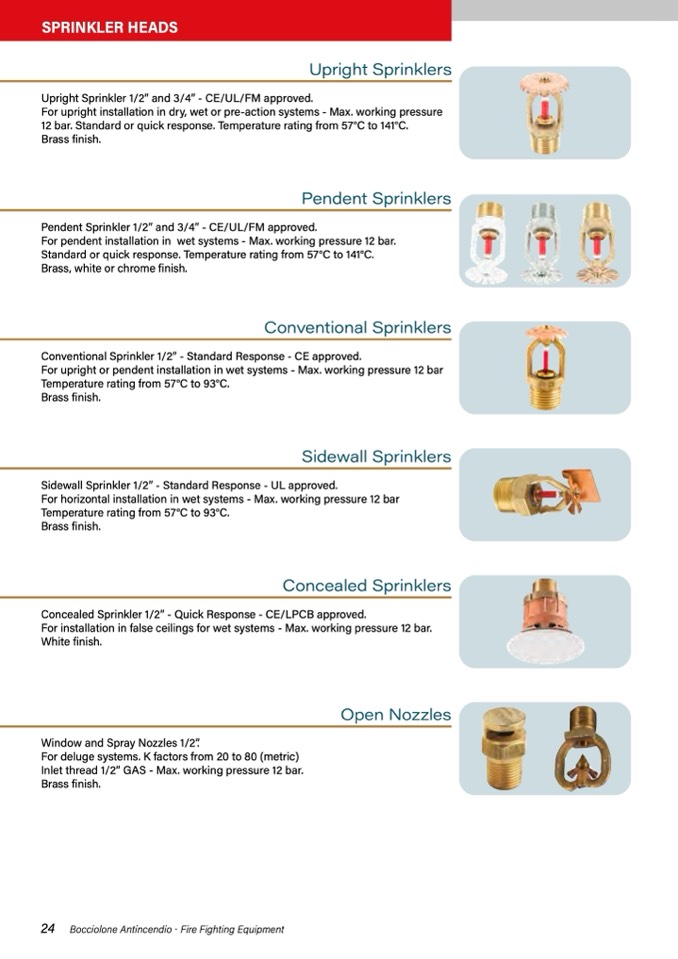

SPRINKLER HEADS

Upright Sprinklers

Upright Sprinkler 1/2” and 3/4” - CE/UL/FM approved.

For upright installation in dry, wet or pre-action systems - Max. working pressure

12 bar. Standard or quick response. Temperature rating from 57°C to 141°C.

Brass finish.

Pendent Sprinklers

Pendent Sprinkler 1/2” and 3/4” - CE/UL/FM approved.

For pendent installation in wet systems - Max. working pressure 12 bar.

Standard or quick response. Temperature rating from 57°C to 141°C.

Brass, white or chrome finish.

Conventional Sprinklers

Conventional Sprinkler 1/2” - Standard Response - CE approved.

For upright or pendent installation in wet systems - Max. working pressure 12 bar

Temperature rating from 57°C to 93°C.

Brass finish.

Sidewall Sprinklers

Sidewall Sprinkler 1/2” - Standard Response - UL approved.

For horizontal installation in wet systems - Max. working pressure 12 bar

Temperature rating from 57°C to 93°C.

Brass finish.

Concealed Sprinklers

Concealed Sprinkler 1/2” - Quick Response - CE/LPCB approved.

For installation in false ceilings for wet systems - Max. working pressure 12 bar.

White finish.

Open Nozzles

Window and Spray Nozzles 1/2”.

For deluge systems. K factors from 20 to 80 (metric)

Inlet thread 1/2” GAS - Max. working pressure 12 bar.

Brass finish.

24 Bocciolone Antincendio · Fire Fighting Equipment
