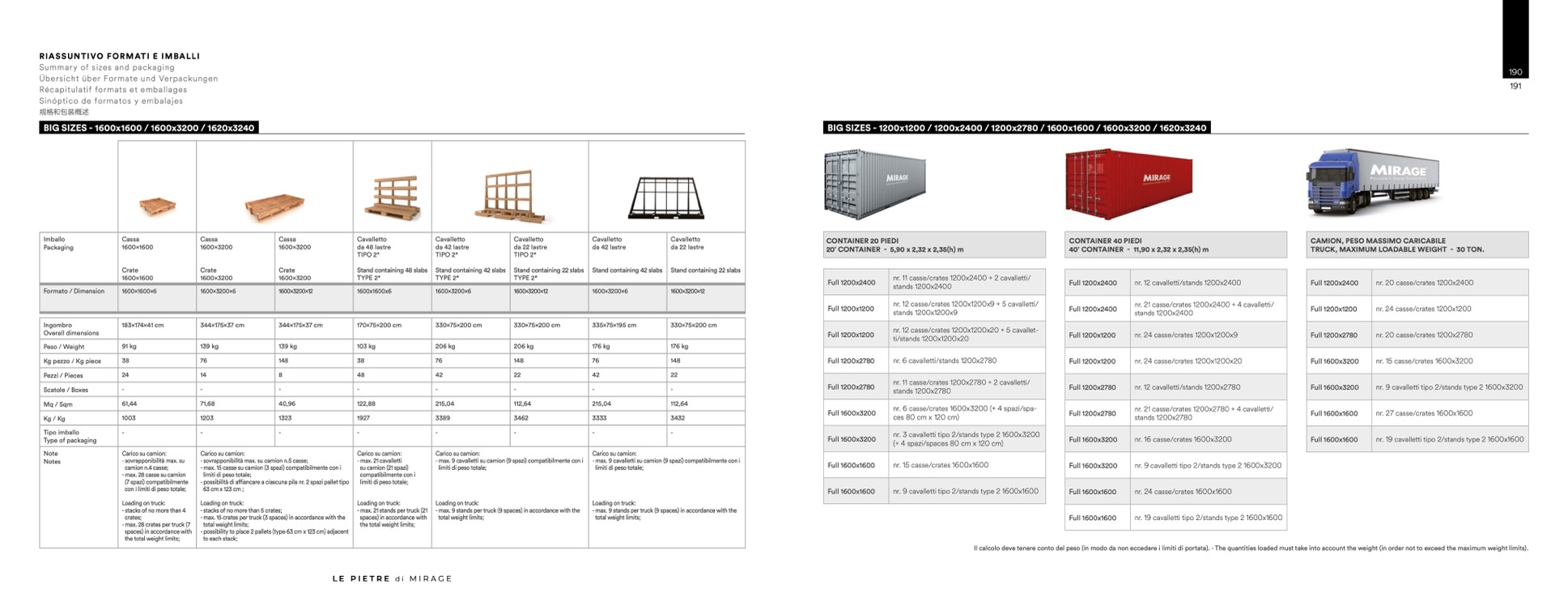

RIASSUNTIVO FORMATI E IMBALLI

Summary of sizes and packaging

Übersicht

über Formate und Verpackungen

R

écapitulatif formats et emballages

Sin

óptico de formatos y embalajes

规格和包装概述

BIG SIZES - 1600x1600 / 1600x3200 / 1620x3240

191

BIG SIZES - 1200x1200 / 1200x2400 / 1200x2780 / 1600x1600 / 1600x3200 / 1620x3240

Imballo

Packaging

Cassa

1600x1600

Crate

1600x1600

Cassa

1600x3200

Crate

1600x3200

Cassa

1600x3200

Crate

1600x3200

Cavalletto

da 48 lastre

TIPO 2*

Stand containing 48 slabs

TYPE 2*

Cavalletto

da 42 lastre

TIPO 2*

Stand containing 42 slabs

TYPE 2*

Cavalletto

da 22 lastre

TIPO 2*

Stand containing 22 slabs

TYPE 2*

Cavalletto

da 42 lastre

Stand containing 42 slabs

Cavalletto

da 22 lastre

Stand containing 22 slabs

Formato / Dimension

1600x1600x6

1600x3200x6

1600x3200x12

1600x1600x6

1600x3200x6

1600x3200x12

1600x3200x6

1600x3200x12

Ingombro

Overall dimensions

183x174x41 cm

344x175x37 cm

344x175x37 cm

170x75x200 cm

330x75x200 cm

330x75x200 cm

335x75x195 cm

330x75x200 cm

Peso / Weight

91 kg

139 kg

139 kg

103 kg

206 kg

206 kg

176 kg

176 kg

Kg pezzo / Kg piece

38

76

148

38

76

148

76

148

Pezzi / Pieces

24

14

8

48

42

22

42

22

Scatole / Boxes

-

-

-

-

-

-

-

-

Mq / Sqm

61,44

71,68

40,96

122,88

215,04

112,64

215,04

112,64

Kg / Kg

1003

1203

1323

1927

3389

3462

3333

3432

Tipo imballo

Type of packaging

-

-

-

-

-

-

-

-

Note

Notes

Carico su camion:

- sovrapponibilità max. su

camion n.4 casse;

- max. 28 casse su camion

(7 spazi) compatibilmente

con i limiti di peso totale;

Loading on truck:

- stacks of no more than 4

crates;

- max. 28 crates per truck (7

spaces) in accordance with

the total weight limits;

Carico su camion:

- sovrapponibilit

à max. su camion n.5 casse;

- max. 15 casse su camion (3 spazi) compatibilmente con i

limiti di peso totale;

- possibilità di affiancare a ciascuna pila nr. 2 spazi pallet tipo

63cmx123cm;

Loading on truck:

- stacks of no more than 5 crates;

- max. 15 crates per truck (3 spaces) in accordance with the

total weight limits;

- possibility to place 2 pallets (type 63 cm x 123 cm) adjacent

to each stack;

Carico su camion:

- max. 21 cavalletti

su camion (21 spazi)

compatibilmente con i

limiti di peso totale;

Loading on truck:

- max. 21 stands per truck (21

spaces) in accordance with

the total weight limits;

Carico su camion:

- max. 9 cavalletti su camion (9 spazi) compatibilmente con i

limiti di peso totale;

Loading on truck:

- max. 9 stands per truck (9 spaces) in accordance with the

total weight limits;

Carico su camion:

- max. 9 cavalletti su camion (9 spazi) compatibilmente con i

limiti di peso totale;

Loading on truck:

- max. 9 stands per truck (9 spaces) in accordance with the

total weight limits;

CONTAINER 20 PIEDI

20’ CONTAINER - 5,90 x 2,32 x 2,35(h) m

Full 1200x2400

nr. 11 casse/crates 1200x2400 + 2 cavalletti/

stands 1200x2400

Full 1200x1200

nr. 12 casse/crates 1200x1200x9 + 5 cavalletti/

stands 1200x1200x9

Full 1200x1200

nr. 12 casse/crates 1200x1200x20 + 5 cavallet-

ti/stands 1200x1200x20

Full 1200x2780

nr. 6 cavalletti/stands 1200x2780

Full 1200x2780

nr. 11 casse/crates 1200x2780 + 2 cavalletti/

stands 1200x2780

Full 1600x3200

nr. 6 casse/crates 1600x3200 (+ 4 spazi/spa-

ces 80 cm x 120 cm)

Full 1600x3200

nr. 3 cavalletti tipo 2/stands type 2 1600x3200

(+ 4 spazi/spaces 80 cm x 120 cm)

Full 1600x1600

nr. 15 casse/crates 1600x1600

Full 1600x1600

nr. 9 cavalletti tipo 2/stands type 2 1600x1600

CAMION, PESO MASSIMO CARICABILE

TRUCK, MAXIMUM LOADABLE WEIGHT - 30 TON.

Full 1200x2400

nr. 20 casse/crates 1200x2400

Full 1200x1200

nr. 24 casse/crates 1200x1200

Full 1200x2780

nr. 20 casse/crates 1200x2780

Full 1600x3200

nr. 15 casse/crates 1600x3200

Full 1600x3200

nr. 9 cavalletti tipo 2/stands type 2 1600x3200

Full 1600x1600

nr. 27 casse/crates 1600x1600

Full 1600x1600

nr. 19 cavalletti tipo 2/stands type 2 1600x1600

CONTAINER 40 PIEDI

40’ CONTAINER - 11,90 x 2,32 x 2,35(h) m

Full 1200x2400

nr. 12 cavalletti/stands 1200x2400

Full 1200x2400

nr. 21 casse/crates 1200x2400 + 4 cavalletti/

stands 1200x2400

Full 1200x1200

nr. 24 casse/crates 1200x1200x9

Full 1200x1200

nr. 24 casse/crates 1200x1200x20

Full 1200x2780

nr. 12 cavalletti/stands 1200x2780

Full 1200x2780

nr. 21 casse/crates 1200x2780 + 4 cavalletti/

stands 1200x2780

Full 1600x3200

nr. 16 casse/crates 1600x3200

Full 1600x3200

nr. 9 cavalletti tipo 2/stands type 2 1600x3200

Full 1600x1600

nr. 24 casse/crates 1600x1600

Full 1600x1600

nr. 19 cavalletti tipo 2/stands type 2 1600x1600

LE PIETRE di MIRAGE

Il calcolo deve tenere conto del peso (in modo da non eccedere i limiti di portata). - The quantities loaded must take into account the weight (in order not to exceed the maximum weight limits).
