DIMENSIONI
Modello
» DIAMETRO NOMINALE
» LARGHEZZA
» LUNGHEZZA
» ALTEZZA
RPS
RPD
W1
W2
W3
P
T
L
L1
H
H1
H2
HB
[DN]
[DN]
[MM] [MM] [MM] [MM] [MM]
[MM] [MM]
[MM] [MM] [MM] [MM]

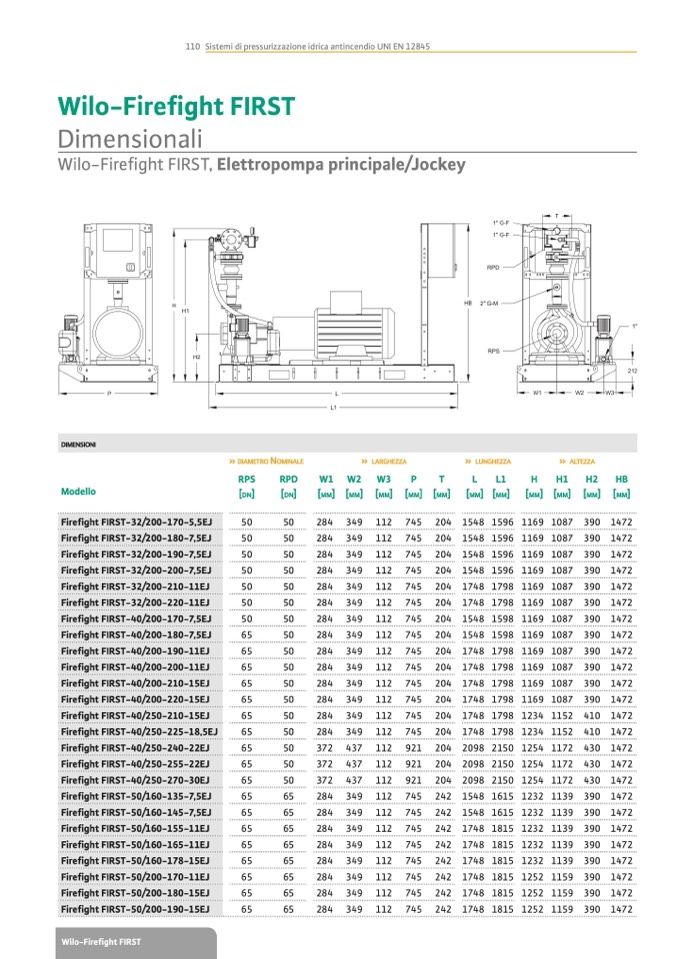

110 Sistemi di pressurizzazione idrica antincendio UNI EN 12845
Wilo-Firefight FIRST
Dimensionali
Wilo-Firefight FIRST, Elettropompa principale/Jockey
FirefightFIRST-32/200-170-5,5EJ
50
50
284 349 112 745 204 1548 1596 1169 1087 390 1472
FirefightFIRST-32/200-180-7,5EJ
50
50
284 349 112 745 204 1548 1596 1169 1087 390 1472
FirefightFIRST-32/200-190-7,5EJ
50
50
284 349 112 745 204 1548 1596 1169 1087 390 1472
FirefightFIRST-32/200-200-7,5EJ
50
50
284 349 112 745 204 1548 1596 1169 1087 390 1472
FirefightFIRST-32/200-210-11EJ
50
50
284 349 112 745 204 1748 1798 1169 1087 390 1472
FirefightFIRST-32/200-220-11EJ
50
50
284 349 112 745 204 1748 1798 1169 1087 390 1472
FirefightFIRST-40/200-170-7,5EJ
50
50
284 349 112 745 204 1548 1598 1169 1087 390 1472
FirefightFIRST-40/200-180-7,5EJ
65
50
284 349 112 745 204 1548 1598 1169 1087 390 1472
FirefightFIRST-40/200-190-11EJ
65
50
284 349 112 745 204 1748 1798 1169 1087 390 1472
FirefightFIRST-40/200-200-11EJ
65
50
284 349 112 745 204 1748 1798 1169 1087 390 1472
FirefightFIRST-40/200-210-15EJ
65
50
284 349 112 745 204 1748 1798 1169 1087 390 1472
FirefightFIRST-40/200-220-15EJ
65
50
284 349 112 745 204 1748 1798 1169 1087 390 1472
FirefightFIRST-40/250-210-15EJ
65
50
284 349 112 745 204 1748 1798 1234 1152 410 1472
FirefightFIRST-40/250-225-18,5EJ
65
50
284 349 112 745 204 1748 1798 1234 1152 410 1472
FirefightFIRST-40/250-240-22EJ
65
50
372 437 112 921 204 2098 2150 1254 1172 430 1472
FirefightFIRST-40/250-255-22EJ
65
50
372 437 112 921 204 2098 2150 1254 1172 430 1472
FirefightFIRST-40/250-270-30EJ
65
50
372 437 112 921 204 2098 2150 1254 1172 430 1472
FirefightFIRST-50/160-135-7,5EJ
65
65
284 349 112 745 242 1548 1615 1232 1139 390 1472
FirefightFIRST-50/160-145-7,5EJ
65
65
284 349 112 745 242 1548 1615 1232 1139 390 1472
FirefightFIRST-50/160-155-11EJ
65
65
284 349 112 745 242 1748 1815 1232 1139 390 1472
FirefightFIRST-50/160-165-11EJ
65
65
284 349 112 745 242 1748 1815 1232 1139 390 1472
FirefightFIRST-50/160-178-15EJ
65
65
284 349 112 745 242 1748 1815 1232 1139 390 1472
FirefightFIRST-50/200-170-11EJ
65
65
284 349 112 745 242 1748 1815 1252 1159 390 1472
FirefightFIRST-50/200-180-15EJ
65
65
284 349 112 745 242 1748 1815 1252 1159 390 1472
FirefightFIRST-50/200-190-15EJ
65
65
284 349 112 745 242 1748 1815 1252 1159 390 1472
